Declaration of Tape, a composed object (an Expr) compiled into a pool, and its evaluator. More...

#include <cstddef>
#include <cstdint>
#include <tuple>
#include <type_traits>
#include <vector>
#include "EBGeometry_AnalyticDistanceFunctions.hpp"
#include "EBGeometry_BVHUnion.hpp"
#include "EBGeometry_BoundingVolumes.hpp"
#include "EBGeometry_CSGRayForms.hpp"
#include "EBGeometry_DistanceQuality.hpp"
#include "EBGeometry_Expr.hpp"
#include "EBGeometry_GPU.hpp"
#include "EBGeometry_MeshDistanceFunctions.hpp"
#include "EBGeometry_OffsetRayForms.hpp"
#include "EBGeometry_PODVector.hpp"
#include "EBGeometry_PackedBVH.hpp"
#include "EBGeometry_Pool.hpp"
#include "EBGeometry_PrimitiveRef.hpp"
#include "EBGeometry_Ray.hpp"
#include "EBGeometry_Vec.hpp"
#include "EBGeometry_TapeImplem.hpp"

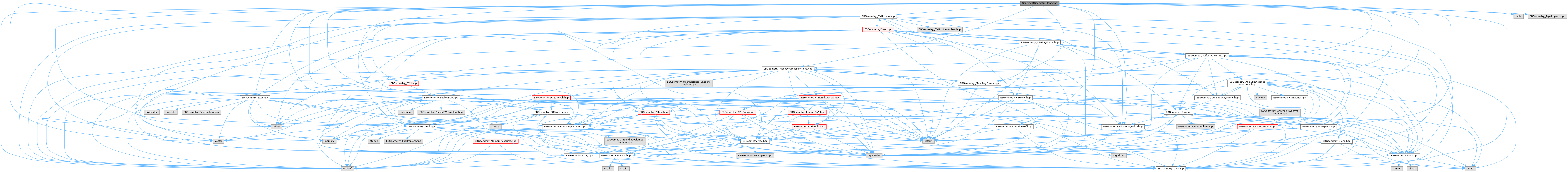

Include dependency graph for EBGeometry_Tape.hpp:

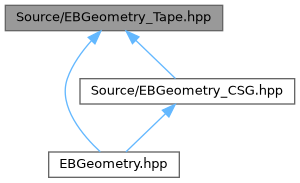

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	EBGeometry::TapeOptions
	Settings for compiling an Expr into a Tape. More...

struct	EBGeometry::TapeFeature::Tag
	Base of every feature: a Tape template argument derived from it is a feature, not a primitive type. More...

struct	EBGeometry::TapeFeature::ExactOffsets
	Ray queries trace an Offset or Annular of a primitive with closed-form level sets (or of an affine map of one) exactly, from its level sets (see RayDetail::LevelForm); without it they march it. The level passes through Scale, Translate and Rotate to the primitive, divided by the map's value scale, so an annulus of a scaled mesh is still traced exactly. More...

struct	EBGeometry::TapeDetail::RayClause
	One ray program clause. More...

struct	EBGeometry::TapeDetail::Clause
	One tape clause. More...

struct	EBGeometry::TapeDetail::Program
	A sub-program: a range of clauses. More...

struct	EBGeometry::TapeDetail::UnionBVH< T, K >
	A BVH union's two parts, as layouts in the tape's pool: a BVH over the sub-programs with bounded boxes, and a single leaf (or nothing) holding those with unbounded ones. More...

struct	EBGeometry::TapeDetail::TypeList< Ps >
	A list of types. More...

struct	EBGeometry::TapeDetail::TypeAt< I, TypeList< Ps... > >
	The I-th type of a TypeList. More...

struct	EBGeometry::TapeDetail::IndexOf< P, TypeList<> >
	P is not in the empty list. More...

struct	EBGeometry::TapeDetail::IndexOf< P, TypeList< Q, Rest... > >
	The index of P in a non-empty list. More...

struct	EBGeometry::TapeDetail::Concat< Lists >
	The concatenation of TypeLists. More...

struct	EBGeometry::TapeDetail::Concat< TypeList< Ps... >, Rest... >
	The concatenation of TypeLists. More...

struct	EBGeometry::TapeDetail::Concat< TypeList< Ps... >, TypeList< Qs... > >
	The concatenation of two TypeLists. More...

struct	EBGeometry::TapeDetail::PrimitiveStore< Ps >
	One pool array per primitive type, holding the type's stored form (CSGDetail::Stored). More...

struct	EBGeometry::TapeDetail::PrimitiveStore< P, Ps... >
	One pool array per primitive type: the first type's, then the rest. More...

struct	EBGeometry::TapeDetail::StoreOf< TypeList< Ps... > >
	The PrimitiveStore for the types of a TypeList. More...

struct	EBGeometry::TapeDetail::UserTypes< T, TypeList< Ps... > >
	Whether a tape's user primitive types are shapes of its precision. More...

class	EBGeometry::Tape< T, UserPrimitives >
	A composed object compiled into a pool: a trivially copyable handle that evaluates the object's signed distance (or implicit function value) on the host or on a device. More...

struct	EBGeometry::Tape< T, UserPrimitives >::Layout
	The tape's arrays as offsets into its pool, with no location (see PoolHandle). More...

struct	EBGeometry::RayForm< Tape< T, UserPrimitives... > >
	Tape's ray form: the tape traced along its ray program (see Tape::firstHit()). Callable on a device. More...

Namespaces
namespace	EBGeometry
	Namespace containing all of EBGeometry's functionality.

namespace	EBGeometry::TapeFeature
	Optional tape features, listed among a Tape's template arguments: Tape<T, TapeFeature::ExactOffsets>.

Typedefs
template<class... Args>
using	EBGeometry::TapeDetail::FeaturesOf = typename Concat< std::conditional_t< IsFeature< Args >, TypeList< Args >, TypeList<> >... >::type
	The features among a Tape's template arguments.

template<class... Args>
using	EBGeometry::TapeDetail::UserTypesOf = typename Concat< std::conditional_t< IsFeature< Args >, TypeList<>, TypeList< Args > >... >::type
	The user primitive types among a Tape's template arguments: those that are not features.

template<class T , class... UserPrimitives>
using	EBGeometry::TapeDetail::Primitives = typename Concat< TypeList< PlaneSDF< T >, SphereSDF< T >, BoxSDF< T >, TorusSDF< T >, CylinderSDF< T >, InfiniteCylinderSDF< T >, CapsuleSDF< T >, InfiniteConeSDF< T >, ConeSDF< T >, RoundedBoxSDF< T >, RoundedCylinderSDF< T >, PerlinSDF< T >, FlatMeshSDF< T >, MeshSDF< T, BVH::DefaultBranchingRatio< T >()>, TriMeshSDF< T, BVH::DefaultBranchingRatio< T >(), TriangleSoA::DefaultWidth< T >()> >, UserTypesOf< UserPrimitives... > >::type
	The tape's primitive types: the twelve analytic shapes, the three mesh SDFs with the default branching factor and SIMD width, then the user's types (its template arguments that are not features).

Enumerations
enum class	EBGeometry::TapeDetail::Op : uint8_t { Primitive , PushAffine , PushElongate , PopPoint , Negate , Abs , AddConstant , MulConstant , Min , Max , PairInit , PairInsert , PairBlend , Blur , Mollify , Repeat , UnionBVH , SmoothUnionBVH }
	The tape's operations. More...

enum class	EBGeometry::TapeDetail::RayOp : uint8_t { Leaf , Marched , Union , Intersection , Complement , PushAffine , PopAffine , UnionBVH }
	The operations of a ray program. More...

Functions
Clause	EBGeometry::TapeDetail::stored (const RayClause &a_clause) noexcept
	A ray program clause, stored in the clause array (the two have the same fields).

RayClause	EBGeometry::TapeDetail::rayClause (const Clause &a_clause) noexcept
	The ray program clause a stored clause is.

template<size_t I, class P , class... Ps>
const auto &	EBGeometry::TapeDetail::storeAt (const PrimitiveStore< P, Ps... > &a_store) noexcept
	The pool array of the I-th primitive type.

template<size_t I, class P , class... Ps>
auto &	EBGeometry::TapeDetail::storeAt (PrimitiveStore< P, Ps... > &a_store) noexcept
	The pool array of the I-th primitive type.

Variables
template<class A >
constexpr bool	EBGeometry::TapeDetail::IsFeature = std::is_base_of_v<TapeFeature::Tag, A>
	Whether a Tape template argument is a feature (see TapeFeature).

Detailed Description

Declaration of Tape, a composed object (an Expr) compiled into a pool, and its evaluator.

A Tape stores its shapes in one array per shape type and its operations as a list of clauses that refer to them by type and index, so evaluating it calls no virtual function and follows no pointer. It is a pool handle (see PoolHandle): trivially copyable, and evaluated against whichever mirror of its pool it is rebased onto. The evaluator keeps to the device subset (no recursion, no function pointers, no exceptions); operations that evaluate a subtree several times (Blur, Mollify, FiniteRepetition and BVH-accelerated unions) call a sub-program through a call-depth template, so nesting is bounded at compile time.

Beside the clauses, the compiler writes a ray program for the tape and for each BVH union operand: the expression's unions, intersections, complements and affine maps over the primitives that have ray forms, in the same order, which Tape's ray form follows to trace the tape exactly along a ray (see EBGeometry_RaySpans.hpp). A subtree with anything else in it is marched as a whole, through its clauses. The evaluator does not read the ray programs.

Author: Robert Marskar

Typedef Documentation

◆ FeaturesOf

template<class... Args>

using EBGeometry::TapeDetail::FeaturesOf = typedef typename Concat<std::conditional_t<IsFeature<Args>, TypeList<Args>, TypeList<> >...>::type

The features among a Tape's template arguments.

Internal helper; not part of the public API.

Template Parameters

Args	Template arguments after T.

◆ Primitives

template<class T , class... UserPrimitives>

using EBGeometry::TapeDetail::Primitives = typedef typename Concat<TypeList<PlaneSDF<T>, SphereSDF<T>, BoxSDF<T>, TorusSDF<T>, CylinderSDF<T>, InfiniteCylinderSDF<T>, CapsuleSDF<T>, InfiniteConeSDF<T>, ConeSDF<T>, RoundedBoxSDF<T>, RoundedCylinderSDF<T>, PerlinSDF<T>, FlatMeshSDF<T>, MeshSDF<T, BVH::DefaultBranchingRatio<T>()>, TriMeshSDF<T, BVH::DefaultBranchingRatio<T>(), TriangleSoA::DefaultWidth<T>()> >, UserTypesOf<UserPrimitives...> >::type

The tape's primitive types: the twelve analytic shapes, the three mesh SDFs with the default branching factor and SIMD width, then the user's types (its template arguments that are not features).

Internal helper; not part of the public API.

Template Parameters

T	Floating-point precision.
UserPrimitives	User primitive types and features.

◆ UserTypesOf

template<class... Args>

using EBGeometry::TapeDetail::UserTypesOf = typedef typename Concat<std::conditional_t<IsFeature<Args>, TypeList<>, TypeList<Args> >...>::type

The user primitive types among a Tape's template arguments: those that are not features.

Internal helper; not part of the public API.

Template Parameters

Args	Template arguments after T.

Enumeration Type Documentation

◆ Op

enum class EBGeometry::TapeDetail::Op : uint8_t

strong

The tape's operations.

Internal helper; not part of the public API. A sub-program runs its clauses in order on a stack of values and a stack of points; its input point is on the point stack when it starts, and its value is the one value left when it ends.

Enumerator
Primitive	Push the value of primitive (m_type, m_a) at the top point.
PushAffine	Push the top point mapped by the affine map at params[m_a..m_a+12).
PushElongate	Push p - clamp(p, -h, h), h at params[m_a..m_a+3).
PopPoint	Pop a point.
Negate	v -> -v.
Abs	v -> \|v\|.
AddConstant	v -> v + params[m_a].
MulConstant	v -> v * params[m_a].
Min	Pop b and a, push min(a, b).
Max	Pop b and a, push max(a, b).
PairInit	Push the empty pair of extreme values (+inf, +inf), or (-inf, -inf) if m_flags is 1.
PairInsert	Pop v and insert it into the pair below: the two smallest, or largest if m_flags is 1.
PairBlend	Pop the pair and push its smooth min (or max if bit 0 of m_flags is set), with the exponential blend if bit 1 is set; smoothing length params[m_a].
Blur	Push the 27-tap blur of sub-program m_a; distance and weights at params[m_b..m_b+5).
Mollify	Push sum_k w_k f(p - o_k) over m_c taps of sub-program m_a; (o_k, w_k) at params[m_b..).
Repeat	Push the minimum over the copies of sub-program m_a (CSGOps::repetition()); period, low and high counts and the object's box at params[m_b..m_b+15).
UnionBVH	Push the minimum over the sub-programs in BVH union m_a.
SmoothUnionBVH	Push the smooth minimum of the two smallest sub-programs in BVH union m_a; smoothing length params[m_b], exponential blend if m_flags is 1.

◆ RayOp

enum class EBGeometry::TapeDetail::RayOp : uint8_t

strong

The operations of a ray program.

Internal helper; not part of the public API. A ray program runs its clauses in order on a stack of span lists (RaySpansT) and a stack of rays; its ray is on the ray stack when it starts, and its list is the one list left when it ends. Bit 0 of a clause's m_flags says that all its spans are needed, not only its first crossing.

Enumerator
Leaf	Push the spans of primitive (m_type, m_a), leaf number m_b, along the top ray. With bit 3 of m_flags, of its level set at params[m_c] (an Offset of it, see RayDetail::LevelView); with bit 4 as well, of its annulus of that half-thickness (see rayLevelLeaf()).
Marched	Push the spans of sub-program m_a along the top ray, marched in the box at params[m_b..m_b+6), with distance quality m_c. With bit 1 of m_flags, it is an operand of an intersection, marched only within the spans of the top list, the operands' before it (see RayDetail::spansWithin()); with bit 2 as well, the intersection needs only its first crossing. With bit 3, it is instead a mesh's level set deferred in an intersection (see RayDetail::DeferredOperand): primitive (m_type, m_a), leaf number m_c, the level at params[m_b] (an annulus with bit 4), and with bit 5 the affine map it is traced through at params[m_b+1..m_b+13) (see rayLevelWithin()).
Union	Pop two lists and push their union.
Intersection	Pop two lists and push their intersection.
Complement	Replace the top list by its complement.
PushAffine	Push the top ray mapped by the affine map at params[m_a..m_a+12).
PopAffine	Pop a ray, and map the top list back through the map at params[m_a..m_a+12).
UnionBVH	Push the union of the spans of the sub-programs in BVH union m_a; its operands, with the sub-programs they call, are sub-programs m_b up to m_c.

Function Documentation

◆ rayClause()

RayClause EBGeometry::TapeDetail::rayClause ( const Clause & a_clause )

inlinenoexcept

The ray program clause a stored clause is.

Internal helper; not part of the public API.

Parameters

[in] a_clause Stored clause.

Returns: The ray program clause.

◆ storeAt() [1/2]

template<size_t I, class P , class... Ps>

const auto & EBGeometry::TapeDetail::storeAt ( const PrimitiveStore< P, Ps... > & a_store )

inlinenoexcept

The pool array of the I-th primitive type.

Internal helper; not part of the public API.

Template Parameters

I	Type index.
P	First primitive type.
Ps	Remaining primitive types.

Parameters

[in] a_store Store.

Returns: The array.

◆ storeAt() [2/2]

template<size_t I, class P , class... Ps>

auto & EBGeometry::TapeDetail::storeAt ( PrimitiveStore< P, Ps... > & a_store )

inlinenoexcept

The pool array of the I-th primitive type.

Internal helper; not part of the public API.

Template Parameters

I	Type index.
P	First primitive type.
Ps	Remaining primitive types.

Parameters

[in,out] a_store Store.

Returns: The array.

◆ stored()

Clause EBGeometry::TapeDetail::stored ( const RayClause & a_clause )

inlinenoexcept

A ray program clause, stored in the clause array (the two have the same fields).

Internal helper; not part of the public API.

Parameters

[in] a_clause Ray program clause.

Returns: The clause it is stored as.

Variable Documentation

◆ IsFeature

template<class A >

constexpr bool EBGeometry::TapeDetail::IsFeature = std::is_base_of_v<TapeFeature::Tag, A>

inlineconstexpr

Whether a Tape template argument is a feature (see TapeFeature).

Internal helper; not part of the public API.

Template Parameters

A	Template argument.
