Polygons as a file stores them: vertex coordinates, faces as lists of vertex indices, and named per-vertex and per-face scalar properties. More...

#include <EBGeometry_PolygonSoup.hpp>

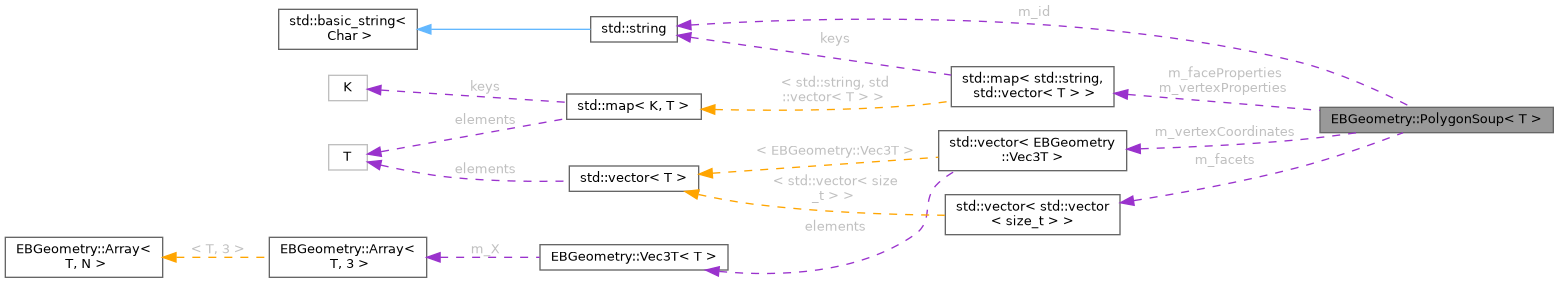

Collaboration diagram for EBGeometry::PolygonSoup< T >:

[legend]

Public Types
using	Vec3 = Vec3T< T >
	Alias for a vector in 3D.

Public Member Functions
	PolygonSoup ()=default
	Default constructor. An empty soup with an empty identifier.

	PolygonSoup (std::string a_id) noexcept
	Constructor. An empty soup with an identifier.

	PolygonSoup (std::string a_id, std::vector< Vec3 > a_vertices, std::vector< std::vector< size_t > > a_facets) noexcept
	Constructor from vertex coordinates and faces, as read.

const std::string &	getID () const noexcept
	Get the identifier.

const std::vector< Vec3 > &	getVertexCoordinates () const noexcept
	Get the vertex coordinates.

const std::vector< std::vector< size_t > > &	getFacets () const noexcept
	Get the faces.

size_t	numVertices () const noexcept
	Number of vertices.

size_t	numFacets () const noexcept
	Number of faces.

bool	hasVertexProperty (const std::string &a_name) const noexcept
	Whether a vertex property exists.

bool	hasFaceProperty (const std::string &a_name) const noexcept
	Whether a face property exists.

const std::vector< T > &	getVertexProperty (const std::string &a_name) const
	Get a vertex property.

const std::vector< T > &	getFaceProperty (const std::string &a_name) const
	Get a face property.

std::vector< std::string >	getVertexPropertyNames () const
	Names of the vertex properties.

std::vector< std::string >	getFacePropertyNames () const
	Names of the face properties.

void	setVertexProperty (const std::string &a_name, std::vector< T > a_data)
	Add or replace a vertex property.

void	setFaceProperty (const std::string &a_name, std::vector< T > a_data)
	Add or replace a face property.

bool	isClean () const noexcept
	Whether the soup is clean: clean() has run, and nothing has changed the geometry since.

size_t	clean ()
	Merge duplicate vertices and remove degenerate faces, carrying the properties along.

DCEL::MeshT< T >	convertToDCEL (Pool &a_pool, Parser::OnDefect a_onDefect=Parser::OnDefect::Throw) const
	Build a DCEL mesh from the soup.

std::vector< Triangle< T > >	convertToTriangles (Parser::OnDefect a_onDefect=Parser::OnDefect::Throw) const
	Build flat triangles from the soup.

Protected Attributes
std::string	m_id
	Identifier, usually the file name.

std::vector< Vec3 >	m_vertexCoordinates
	Vertex coordinates.

std::vector< std::vector< size_t > >	m_facets
	Faces, each a list of indices into m_vertexCoordinates.

std::map< std::string, std::vector< T > >	m_vertexProperties
	Vertex properties, one value per vertex.

std::map< std::string, std::vector< T > >	m_faceProperties
	Face properties, one value per face.

bool	m_isClean = false
	Whether clean() has run.

Detailed Description

template<typename T>
class EBGeometry::PolygonSoup< T >

Polygons as a file stores them: vertex coordinates, faces as lists of vertex indices, and named per-vertex and per-face scalar properties.

Every file reader (Parser::readSTL, readPLY, readVTK, readOBJ and readIntoPolygonSoup) returns one, already cleaned (see clean()). Face i of a clean soup is face i of the DCEL mesh convertToDCEL() builds, so it is the face id that MeshSDF, FlatMeshSDF and TriMeshSDF report from getClosestFace(), and getFaceProperty(name)[i] is that face's property. Vertex i of a clean soup is likewise vertex i of the mesh.

The geometry is set once, at construction; properties can be added afterwards. A soup built by hand is not clean until clean() is called. convertToDCEL() and convertToTriangles() clean a copy of an unclean soup first, so they build the same mesh either way, but only a clean soup's own face and vertex indices match the mesh's.

Template Parameters

T	Floating-point precision for vertex coordinates and properties.

Constructor & Destructor Documentation

◆ PolygonSoup() [1/2]

template<typename T >

EBGeometry::PolygonSoup< T >::PolygonSoup ( std::string a_id )

explicitnoexcept

Constructor. An empty soup with an identifier.

Parameters

[in] a_id Identifier, usually the file name. ParseError reports it as the file.

◆ PolygonSoup() [2/2]

template<typename T >

EBGeometry::PolygonSoup< T >::PolygonSoup	(	std::string	a_id,
		std::vector< Vec3 >	a_vertices,
		std::vector< std::vector< size_t > >	a_facets
	)

noexcept

Constructor from vertex coordinates and faces, as read.

Not cleaned here, so the input may contain duplicate vertices, degenerate faces, or an out-of-range index; clean() rejects or repairs them.

Parameters

[in]	a_id	Identifier, usually the file name. ParseError reports it as the file.
[in]	a_vertices	Vertex coordinates.
[in]	a_facets	Faces, each a list of indices into a_vertices, in order around the face.

Member Function Documentation

◆ clean()

template<typename T >

size_t EBGeometry::PolygonSoup< T >::clean ( )

Merge duplicate vertices and remove degenerate faces, carrying the properties along.

In order:

Soup::isValid(): a vertex index out of range, or a non-finite coordinate, throws.
Soup::compress(): vertices at the same position merge into one, and the vertices are sorted lexicographically. A merged vertex takes its properties from the first of them in the input.
Soup::removeDegeneratePolygons(): faces with fewer than three distinct vertices, and zero-area faces, are removed, and the T-junctions such a face filled are repaired. The remaining faces keep their order, and their properties.

Cleaning a clean soup changes nothing.

Returns: The number of faces removed.

Exceptions

Parser::ParseError,naming getID() as the file, if the soup fails Soup::isValid().

◆ convertToDCEL()

template<typename T >

DCEL::MeshT< T > EBGeometry::PolygonSoup< T >::convertToDCEL	(	Pool &	a_pool,
		Parser::OnDefect	a_onDefect = `Parser::OnDefect::Throw`
	)		const

Build a DCEL mesh from the soup.

Cleans a copy first if the soup is not clean (see clean()). Face i and vertex i of a clean soup are face i and vertex i of the mesh. The mesh is attached to a_pool, which must outlive it.

Parameters

[in,out]	a_pool	Pool to reserve the mesh's vertex, edge and face storage from.
[in]	a_onDefect	Whether faces oriented inconsistently, an edge shared by three or more faces, or faces that fold back onto each other throw (the default) or only print a warning.

Returns: The mesh, by value.

Exceptions

Parser::ParseError if the soup cannot describe a mesh: it fails Soup::isValid(), it has no faces, a face visits a vertex twice, the faces cannot be joined into a half-edge mesh (see Soup::findTopologyDefect()), or faces fold back onto each other (see Soup::findFoldedFeature()). With Parser::OnDefect::Warn the last two only print a warning.

◆ convertToTriangles()

template<typename T >

std::vector< Triangle< T > > EBGeometry::PolygonSoup< T >::convertToTriangles ( Parser::OnDefect a_onDefect = Parser::OnDefect::Throw ) const

Build flat triangles from the soup.

Builds the DCEL mesh as convertToDCEL() does, in a Pool private to this call, and cuts each face into triangles, a polygon by a fan from one of its vertices (the one whose smallest fan triangle is largest), and a zero-area face into none. Each triangle carries the index of the mesh face it was cut from, and the mesh's edge and vertex normals.

Parameters

[in] a_onDefect As for convertToDCEL().

Returns: The triangles, by value.

Exceptions

Parser::ParseError as convertToDCEL().

◆ getFaceProperty()

template<typename T >

const std::vector< T > & EBGeometry::PolygonSoup< T >::getFaceProperty ( const std::string & a_name ) const

Get a face property.

Parameters

[in] a_name Property name.

Returns: One value per face.

Exceptions

std::out_of_range if the property does not exist.

◆ getFacePropertyNames()

template<typename T >

std::vector< std::string > EBGeometry::PolygonSoup< T >::getFacePropertyNames ( ) const

Names of the face properties.

Returns: The names, sorted.

◆ getFacets()

template<typename T >

const std::vector< std::vector< size_t > > & EBGeometry::PolygonSoup< T >::getFacets ( ) const

noexcept

Get the faces.

Returns: For each face, the indices of its vertices in order around it.

◆ getID()

template<typename T >

const std::string & EBGeometry::PolygonSoup< T >::getID ( ) const

noexcept

Get the identifier.

Returns: The identifier, usually the file name.

◆ getVertexCoordinates()

template<typename T >

const std::vector< Vec3 > & EBGeometry::PolygonSoup< T >::getVertexCoordinates ( ) const

noexcept

Get the vertex coordinates.

Returns: The vertex coordinates.

◆ getVertexProperty()

template<typename T >

const std::vector< T > & EBGeometry::PolygonSoup< T >::getVertexProperty ( const std::string & a_name ) const

Get a vertex property.

Parameters

[in] a_name Property name.

Returns: One value per vertex.

Exceptions

std::out_of_range if the property does not exist.

◆ getVertexPropertyNames()

template<typename T >

std::vector< std::string > EBGeometry::PolygonSoup< T >::getVertexPropertyNames ( ) const

Names of the vertex properties.

Returns: The names, sorted.

◆ hasFaceProperty()

template<typename T >

bool EBGeometry::PolygonSoup< T >::hasFaceProperty ( const std::string & a_name ) const

noexcept

Whether a face property exists.

Parameters

[in] a_name Property name.

Returns: True if the soup has a face property of that name.

◆ hasVertexProperty()

template<typename T >

bool EBGeometry::PolygonSoup< T >::hasVertexProperty ( const std::string & a_name ) const

noexcept

Whether a vertex property exists.

Parameters

[in] a_name Property name.

Returns: True if the soup has a vertex property of that name.

◆ isClean()

template<typename T >

bool EBGeometry::PolygonSoup< T >::isClean ( ) const

noexcept

Whether the soup is clean: clean() has run, and nothing has changed the geometry since.

Returns: True if the soup is clean.

◆ numFacets()

template<typename T >

size_t EBGeometry::PolygonSoup< T >::numFacets ( ) const

noexcept

Number of faces.

Returns: getFacets().size().

◆ numVertices()

template<typename T >

size_t EBGeometry::PolygonSoup< T >::numVertices ( ) const

noexcept

Number of vertices.

Returns: getVertexCoordinates().size().

◆ setFaceProperty()

template<typename T >

void EBGeometry::PolygonSoup< T >::setFaceProperty	(	const std::string &	a_name,
		std::vector< T >	a_data
	)

Add or replace a face property.

Parameters

[in]	a_name	Property name.
[in]	a_data	One value per face. Its size must be numFacets(); any other size aborts with a message, in every build.

◆ setVertexProperty()

template<typename T >

void EBGeometry::PolygonSoup< T >::setVertexProperty	(	const std::string &	a_name,
		std::vector< T >	a_data
	)

Add or replace a vertex property.

Parameters

[in]	a_name	Property name.
[in]	a_data	One value per vertex. Its size must be numVertices(); any other size aborts with a message, in every build.

Member Data Documentation

◆ m_isClean

template<typename T >

bool EBGeometry::PolygonSoup< T >::m_isClean = false

protected

Whether clean() has run.

The geometry is set only by the constructors, so nothing can make a clean soup unclean again. A member function that changes the vertices or faces must reset this flag.

The documentation for this class was generated from the following file:

Source/EBGeometry_PolygonSoup.hpp
