EBGeometry::Triangle< T, Meta > Class Template Reference

Triangle class with signed distance functionality. More...

#include <EBGeometry_Triangle.hpp>

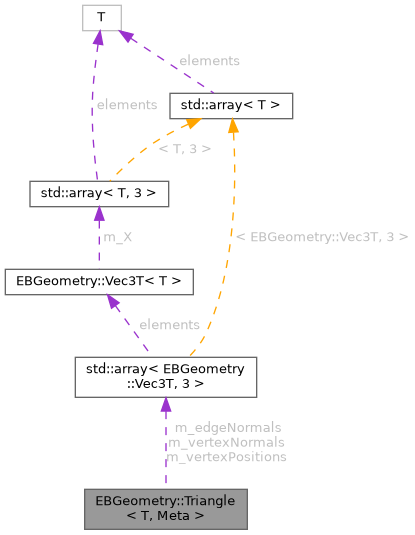

Public Types
using	Vec2 = Vec2T< T >
	Alias for 2D vector type.
using	Vec3 = Vec3T< T >
	Alias for 3D vector type.

Public Member Functions
	Triangle () noexcept=default
	Default constructor. Does not put the triangle in a usable state.
	Triangle (const Triangle &a_otherTriangle) noexcept=default
	Copy constructor.
	Triangle (const std::array< Vec3, 3 > &a_vertexPositions) noexcept
	Full constructor.
	~Triangle () noexcept=default
	Destructor (does nothing).
Triangle &	operator= (const Triangle &a_otherTriangle) noexcept=default
	Copy assignment.
Triangle &	operator= (Triangle &&a_otherTriangle) noexcept=default
	Move assignment.
void	setNormal (const Vec3 &a_normal) noexcept
	Set the triangle normal vector.
void	setVertexPositions (const std::array< Vec3, 3 > &a_vertexPositions) noexcept
	Set the triangle vertex positions.
void	setVertexNormals (const std::array< Vec3, 3 > &a_vertexNormals) noexcept
	Set the triangle vertex normals.
void	setEdgeNormals (const std::array< Vec3, 3 > &a_edgeNormals) noexcept
	Set the triangle edge normals.
void	setMetaData (const Meta &a_metaData) noexcept
	Set the triangle meta-data.
void	computeNormal () noexcept
	Compute the triangle normal vector.
Vec3 &	getNormal () noexcept
	Get the triangle normal vector.
const Vec3 &	getNormal () const noexcept
	Get the triangle normal vector.
std::array< Vec3, 3 > &	getVertexPositions () noexcept
	Get the vertex positions.
const std::array< Vec3, 3 > &	getVertexPositions () const noexcept
	Get the vertex positions.
std::array< Vec3, 3 > &	getVertexNormals () noexcept
	Get the vertex normals.
const std::array< Vec3, 3 > &	getVertexNormals () const noexcept
	Get the vertex normals.
std::array< Vec3, 3 > &	getEdgeNormals () noexcept
	Get the edge normals.
const std::array< Vec3, 3 > &	getEdgeNormals () const noexcept
	Get the edge normals.
Meta &	getMetaData () noexcept
	Get the triangle meta-data.
const Meta &	getMetaData () const noexcept
	Get the triangle meta-data.
T	signedDistance (const Vec3 &a_point) const noexcept
	Compute the signed distance from the input point x to the triangle.

Protected Member Functions
T	projectPointToEdge (const Vec3 &a_point, const Vec3 &a_x0, const Vec3 &a_x1) const noexcept
	Returns the "projection" of a point to an edge.

Protected Attributes
Vec3	m_triangleNormal = Vec3::max()
	Triangle face normal.
std::array< Vec3, 3 >	m_vertexPositions {Vec3::max(), Vec3::max(), Vec3::max()}
	Triangle vertex positions.
std::array< Vec3, 3 >	m_vertexNormals {Vec3::max(), Vec3::max(), Vec3::max()}
	Triangle vertex normals.
std::array< Vec3, 3 >	m_edgeNormals {Vec3::max(), Vec3::max(), Vec3::max()}
	Triangle edge normals.
Triangle2D< T >	m_triangle2D
	2D projection of the triangle to one of the Cartesian coordinate directions
Meta	m_metaData
	Triangle meta-data normals.

Detailed Description

template<class T, class Meta>
class EBGeometry::Triangle< T, Meta >

Triangle class with signed distance functionality.

This class represents a planar triangle and has a signed distance functionality. It is self-contained such that it can be directly copied to GPUs. The class contains a triangle face normal vector; three vertex positions, and normal vectors for the three vertices and three edges.

This class assumes that the vertices are organized with the right-hand rule. I.e., edges are enumerated as follows:

Edge 1 points from vertex 1 to vertex 2 Edge 2 points from vertex 2 to vertex 3 Edge 3 points from vertex 3 to vertex 0

This class can compute its own normal vector from the vertex positions, and the triangle orientation is then implicitly given by the vertex order.

To compute the distance from a point to the triangle, one must determine if the point projects to the "inside" or "outside" of the triangle. This class contains a 2D embedding of the triangle that can perform this project. If the query point projects to the inside of the triangle, the distance is simply the projected distance onto the triangle plane. If it projects to the outside of the triangle, we check the distance against the triangle edges and vertices. the ed

Constructor & Destructor Documentation

Triangle() [1/2]

template<class T , class Meta >

EBGeometry::Triangle< T, Meta >::Triangle ( const Triangle< T, Meta > &  a_otherTriangle )

defaultnoexcept

Copy constructor.

Parameters

[in]

a_otherTriangle

Other triangle.

Triangle() [2/2]

template<class T , class Meta >

EBGeometry::Triangle< T, Meta >::Triangle ( const std::array< Vec3, 3 > &  a_vertexPositions )

noexcept

Full constructor.

Parameters

[in]

a_vertexPositions

Triangle vertex positions

Member Function Documentation

computeNormal()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::computeNormal ( )

noexcept

Compute the triangle normal vector.

This computes the normal vector from two of the triangle edges.

getEdgeNormals() [1/2]

template<class T , class Meta >

const std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getEdgeNormals ( ) const

noexcept

Get the edge normals.

Returns

m_edgeNormals

getEdgeNormals() [2/2]

template<class T , class Meta >

std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getEdgeNormals ( )

noexcept

Get the edge normals.

Returns

m_edgeNormals

getMetaData() [1/2]

template<class T , class Meta >

const Meta & EBGeometry::Triangle< T, Meta >::getMetaData ( ) const

noexcept

Get the triangle meta-data.

Returns

m_metaData

getMetaData() [2/2]

template<class T , class Meta >

Meta & EBGeometry::Triangle< T, Meta >::getMetaData ( )

noexcept

Get the triangle meta-data.

Returns

m_metaData

getNormal() [1/2]

template<class T , class Meta >

const Vec3 & EBGeometry::Triangle< T, Meta >::getNormal ( ) const

noexcept

Get the triangle normal vector.

Returns

m_triangleNormal

getNormal() [2/2]

template<class T , class Meta >

Vec3 & EBGeometry::Triangle< T, Meta >::getNormal ( )

noexcept

Get the triangle normal vector.

Returns

m_triangleNormal

getVertexNormals() [1/2]

template<class T , class Meta >

const std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getVertexNormals ( ) const

noexcept

Get the vertex normals.

Returns

m_vertexNormals

getVertexNormals() [2/2]

template<class T , class Meta >

std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getVertexNormals ( )

noexcept

Get the vertex normals.

Returns

m_vertexNormals

getVertexPositions() [1/2]

template<class T , class Meta >

const std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getVertexPositions ( ) const

noexcept

Get the vertex positions.

Returns

m_vertexPositions

getVertexPositions() [2/2]

template<class T , class Meta >

std::array< Vec3, 3 > & EBGeometry::Triangle< T, Meta >::getVertexPositions ( )

noexcept

Get the vertex positions.

Returns

m_vertexPositions

operator=() [1/2]

template<class T , class Meta >

Triangle & EBGeometry::Triangle< T, Meta >::operator= ( const Triangle< T, Meta > &  a_otherTriangle )

defaultnoexcept

Copy assignment.

Parameters

[in]

a_otherTriangle

Other triangle.

operator=() [2/2]

template<class T , class Meta >

Triangle & EBGeometry::Triangle< T, Meta >::operator= ( Triangle< T, Meta > &&  a_otherTriangle )

defaultnoexcept

Move assignment.

Parameters

[in,out]

a_otherTriangle

Other triangle.

projectPointToEdge()

template<class T , class Meta >

T EBGeometry::Triangle< T, Meta >::projectPointToEdge ( const Vec3 &  a_point, const Vec3 &  a_x0, const Vec3 &  a_x1  ) const

protectednoexcept

Returns the "projection" of a point to an edge.

This function parametrizes the edge as x(t) = x0 + (x1-x0)*t and returns where on the this edge the point a_x0 projects. If projects onto the edge if t = [0,1] and to one of the start/end vertices otherwise.

Parameters

[in]	a_point	Query point
[in]	a_x0	Starting edge coordinate
[in]	a_x1	Final edge coordinate

setEdgeNormals()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::setEdgeNormals ( const std::array< Vec3, 3 > &  a_edgeNormals )

noexcept

Set the triangle edge normals.

Parameters

[in]

a_edgeNormals

Edge normals

setMetaData()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::setMetaData ( const Meta &  a_metaData )

noexcept

Set the triangle meta-data.

Parameters

[in]

a_metaData

Triangle metadata.

setNormal()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::setNormal ( const Vec3 &  a_normal )

noexcept

Set the triangle normal vector.

Parameters

[in]

a_normal

Normal vector (should be consistent with the vertex ordering!).

setVertexNormals()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::setVertexNormals ( const std::array< Vec3, 3 > &  a_vertexNormals )

noexcept

Set the triangle vertex normals.

Parameters

[in]

a_vertexNormals

Vertex normals

setVertexPositions()

template<class T , class Meta >

void EBGeometry::Triangle< T, Meta >::setVertexPositions ( const std::array< Vec3, 3 > &  a_vertexPositions )

noexcept

Set the triangle vertex positions.

Parameters

[in]

a_vertexPositions

Vertex positions

signedDistance()

template<class T , class Meta >

T EBGeometry::Triangle< T, Meta >::signedDistance ( const Vec3 &  a_point ) const

noexcept

Compute the signed distance from the input point x to the triangle.

Parameters

[in]

a_point

Point

---

The documentation for this class was generated from the following file:

• /home/runner/work/EBGeometry/EBGeometry/Source/EBGeometry_Triangle.hpp
