EBGeometry::SignedDistanceFunction< T > Class Template Reference

Abstract representation of a signed distance function. More...

#include <EBGeometry_SignedDistanceFunction.hpp>

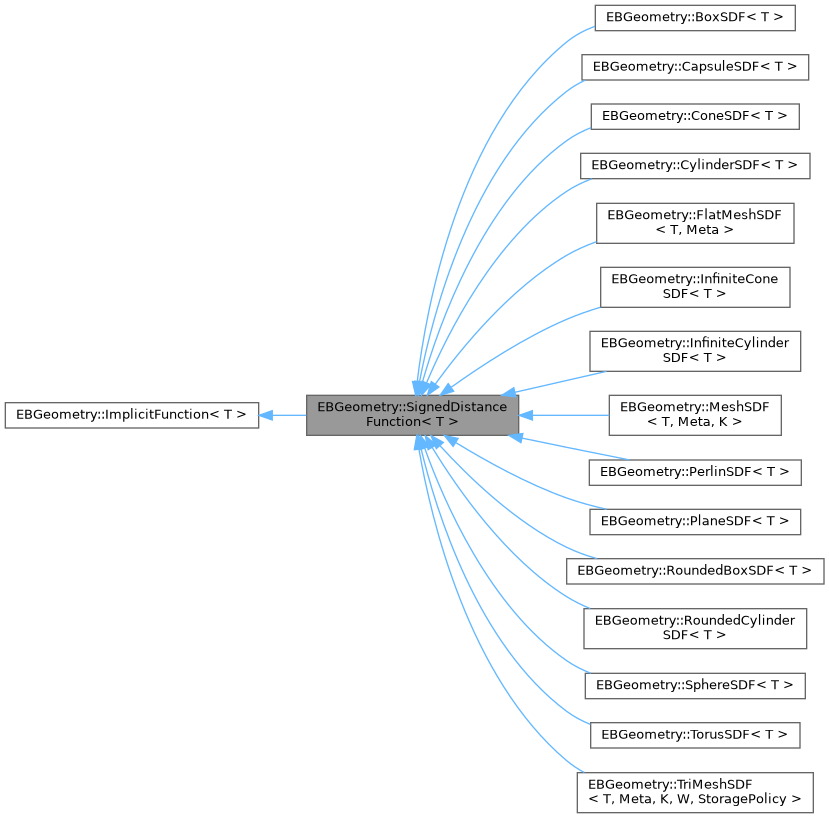

Inheritance diagram for EBGeometry::SignedDistanceFunction< T >:

Collaboration diagram for EBGeometry::SignedDistanceFunction< T >:

Public Member Functions
	SignedDistanceFunction ()=default
	Default constructor.
	~SignedDistanceFunction () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept final
	Implementation of ImplicitFunction::value; delegates to signedDistance().
virtual T	signedDistance (const Vec3T< T > &a_point) const noexcept=0
	Pure virtual signed distance function to be implemented by subclasses.
virtual Vec3T< T >	normal (const Vec3T< T > &a_point, const T &a_delta) const noexcept
	Compute the outward normal using central finite differences.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Detailed Description

template<class T>
class EBGeometry::SignedDistanceFunction< T >

Abstract representation of a signed distance function.

Users can put whatever they like in here, e.g. analytic functions, DCEL meshes, or DCEL meshes stored in a full TreeBVH or a PackedBVH. The signedDistance function must be implemented by the user. When computing it, the user can apply transformation operators (rotations, scaling, translations) by calling transformPoint on the input coordinate.

Template Parameters

T	Floating-point precision.

Member Function Documentation

normal()

template<class T >

virtual Vec3T< T > EBGeometry::SignedDistanceFunction< T >::normal ( const Vec3T< T > &  a_point, const T &  a_delta  ) const

inlinevirtualnoexcept

Compute the outward normal using central finite differences.

Approximates the gradient of the signed distance function at a_point using step size a_delta, then normalizes the result.

Parameters

[in]	a_point	3D query point.
[in]	a_delta	Finite-difference step size. Must be strictly positive.

Returns

Outward unit normal vector at a_point. Undefined if the finite-difference gradient is exactly zero (e.g. a_point sits on a local extremum of signedDistance).

signedDistance()

template<class T >

virtual T EBGeometry::SignedDistanceFunction< T >::signedDistance ( const Vec3T< T > &  a_point ) const

pure virtualnoexcept

Pure virtual signed distance function to be implemented by subclasses.

Parameters

[in]

a_point

3D query point.

Returns

Signed distance at a_point; negative inside, positive outside.

Implemented in EBGeometry::PlaneSDF< T >, EBGeometry::SphereSDF< T >, EBGeometry::BoxSDF< T >, EBGeometry::TorusSDF< T >, EBGeometry::CylinderSDF< T >, EBGeometry::InfiniteCylinderSDF< T >, EBGeometry::CapsuleSDF< T >, EBGeometry::InfiniteConeSDF< T >, EBGeometry::ConeSDF< T >, EBGeometry::RoundedBoxSDF< T >, EBGeometry::PerlinSDF< T >, EBGeometry::RoundedCylinderSDF< T >, EBGeometry::FlatMeshSDF< T, Meta >, EBGeometry::MeshSDF< T, Meta, K >, and EBGeometry::TriMeshSDF< T, Meta, K, W, StoragePolicy >.

value()

template<class T >

T EBGeometry::SignedDistanceFunction< T >::value ( const Vec3T< T > &  a_point ) const

finalvirtualnoexcept

Implementation of ImplicitFunction::value; delegates to signedDistance().

Parameters

[in]

a_point

3D query point.

Returns

Signed distance at a_point.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_SignedDistanceFunction.hpp
