EBGeometry::STL< T > Class Template Reference

Class for storing contents of STL files. More...

#include <EBGeometry_STL.hpp>

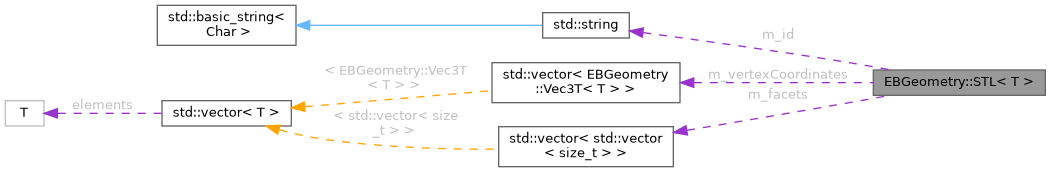

Collaboration diagram for EBGeometry::STL< T >:

Public Member Functions
	STL () noexcept=default
	Default constructor. Initializes empty member data holder.
	STL (const std::string &a_id) noexcept
	Constructor. Initializes empty vertices and facets but sets the STL ID (usually the file name.
	STL (const STL &a_other)=default
	Copy constructor.
	STL (STL &&a_other) noexcept=default
	Move constructor.
STL &	operator= (const STL &a_other)=default
	Copy assignment operator.
STL &	operator= (STL &&a_other) noexcept=default
	Move assignment operator.
	~STL () noexcept=default
	Destructor (does nothing).
std::string &	getID () noexcept
	Get the identifier for this object.
const std::string &	getID () const noexcept
	Get the identifier for this object.
std::vector< Vec3T< T > > &	getVertexCoordinates () noexcept
	Get the vertex coordinates.
const std::vector< Vec3T< T > > &	getVertexCoordinates () const noexcept
	Get the vertex coordinates.
std::vector< std::vector< size_t > > &	getFacets () noexcept
	Get the triangle facet indices.
const std::vector< std::vector< size_t > > &	getFacets () const noexcept
	Get the triangle facet indices.
template<typename Meta >
std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > >	convertToDCEL () const noexcept
	Turn the STL mesh into a DCEL mesh.

Protected Attributes
std::string	m_id
	STL object ID.
std::vector< Vec3T< T > >	m_vertexCoordinates
	Vertex coordinates.
std::vector< std::vector< size_t > >	m_facets
	Triangle facets.

Detailed Description

template<typename T>
class EBGeometry::STL< T >

Class for storing contents of STL files.

This structure is simply used as conversion utility between STL files and various EBGeometry objects (triangle soups, DCEL meshes, etc).

Template Parameters

T	Floating-point precision for vertex coordinates.

Constructor & Destructor Documentation

STL() [1/3]

template<typename T >

EBGeometry::STL< T >::STL ( const std::string &  a_id )

noexcept

Constructor. Initializes empty vertices and facets but sets the STL ID (usually the file name.

Parameters

[in]

a_id

Identifier for STL object

STL() [2/3]

template<typename T >

EBGeometry::STL< T >::STL ( const STL< T > &  a_other )

default

Copy constructor.

Parameters

[in]

a_other

Other STL object.

STL() [3/3]

template<typename T >

EBGeometry::STL< T >::STL ( STL< T > &&  a_other )

defaultnoexcept

Move constructor.

Parameters

[in,out]

a_other

Other STL object.

Member Function Documentation

convertToDCEL()

template<typename T >

template<typename Meta >

std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > > EBGeometry::STL< T >::convertToDCEL ( ) const

noexcept

Turn the STL mesh into a DCEL mesh.

This call does not populate any meta-data in the DCEL mesh structures.

Template Parameters

Meta	Metadata type attached to DCEL vertices, edges, and faces.

Returns

Shared pointer to the constructed DCEL mesh.

getFacets() [1/2]

template<typename T >

const std::vector< std::vector< size_t > > & EBGeometry::STL< T >::getFacets ( ) const

noexcept

Get the triangle facet indices.

Returns

m_facets

getFacets() [2/2]

template<typename T >

std::vector< std::vector< size_t > > & EBGeometry::STL< T >::getFacets ( )

noexcept

Get the triangle facet indices.

Returns

m_facets

getID() [1/2]

template<typename T >

const std::string & EBGeometry::STL< T >::getID ( ) const

noexcept

Get the identifier for this object.

Returns

Const reference to the STL object identifier.

getID() [2/2]

template<typename T >

std::string & EBGeometry::STL< T >::getID ( )

noexcept

Get the identifier for this object.

Returns

Reference to the STL object identifier.

getVertexCoordinates() [1/2]

template<typename T >

const std::vector< Vec3T< T > > & EBGeometry::STL< T >::getVertexCoordinates ( ) const

noexcept

Get the vertex coordinates.

Returns

m_vertexCoordinates

getVertexCoordinates() [2/2]

template<typename T >

std::vector< Vec3T< T > > & EBGeometry::STL< T >::getVertexCoordinates ( )

noexcept

Get the vertex coordinates.

Returns

m_vertexCoordinates

operator=() [1/2]

template<typename T >

STL & EBGeometry::STL< T >::operator= ( const STL< T > &  a_other )

default

Copy assignment operator.

Parameters

[in]

a_other

Other STL object.

Returns

Reference to (*this).

operator=() [2/2]

template<typename T >

STL & EBGeometry::STL< T >::operator= ( STL< T > &&  a_other )

defaultnoexcept

Move assignment operator.

Parameters

[in,out]

a_other

Other STL object.

Returns

Reference to (*this).

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_STL.hpp
