Vertex class for navigating a DCEL mesh. More...

#include <EBGeometry_DCEL_Vertex.hpp>

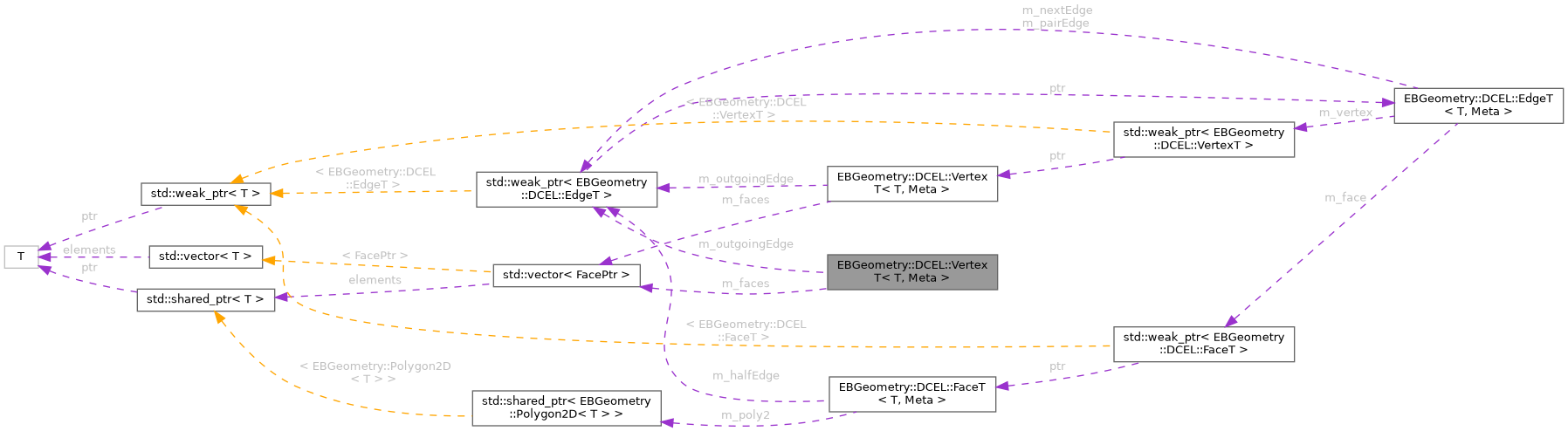

Collaboration diagram for EBGeometry::DCEL::VertexT< T, Meta >:

[legend]

Public Types
using	Vec3 = Vec3T< T >
	Alias for vector type.

using	Vertex = VertexT< T, Meta >
	Alias for vertex type.

using	Edge = EdgeT< T, Meta >
	Alias for edge type.

using	Face = FaceT< T, Meta >
	Alias for face type.

using	VertexPtr = std::shared_ptr< Vertex >
	Alias for vertex pointer type.

using	EdgePtr = std::shared_ptr< Edge >
	Alias for edge pointer type.

using	FacePtr = std::shared_ptr< Face >
	Alias for face pointer type.

using	EdgeIterator = EdgeIteratorT< T, Meta >
	Alias for edge iterator.

Public Member Functions
	VertexT ()=default
	Default constructor.

	VertexT (const Vec3 &a_position)
	Partial constructor.

	VertexT (const Vec3 &a_position, const Vec3 &a_normal)
	Constructor.

	VertexT (const Vertex &a_otherVertex)
	Copy constructor.

	VertexT (Vertex &&a_otherVertex)=default
	Move constructor.

	~VertexT ()=default
	Destructor (does nothing)

Vertex &	operator= (const Vertex &a_otherVertex)
	Copy assignment operator.

Vertex &	operator= (Vertex &&a_otherVertex)=default
	Move assignment operator.

void	define (const Vec3 &a_position, const EdgePtr &a_edge, const Vec3 &a_normal) noexcept
	Define function.

void	setPosition (const Vec3 &a_position) noexcept
	Set the vertex position.

void	setNormal (const Vec3 &a_normal) noexcept
	Set the vertex normal vector.

void	setEdge (const EdgePtr &a_edge) noexcept
	Set the reference to the outgoing edge.

void	setMetaData (const Meta &a_metaData) noexcept
	Set the meta-data.

void	addFace (const FacePtr &a_face)
	Add a face to the polygon face list.

void	normalizeNormalVector () noexcept
	Normalize the normal vector, ensuring its length is 1.

void	computeVertexNormalAverage () noexcept
	Compute the vertex normal, using an average the normal vector in this vertex's face list (m_faces)

void	computeVertexNormalAverage (const std::vector< FacePtr > &a_faces) noexcept
	Compute the vertex normal, using an average of the normal vectors in the input face list.

void	computeVertexNormalAngleWeighted ()
	Compute the vertex normal, using the pseudonormal algorithm which weights the normal with the subtended angle to each connected face.

void	computeVertexNormalAngleWeighted (const std::vector< FacePtr > &a_faces)
	Compute the vertex normal, using the pseudonormal algorithm which weights the normal with the subtended angle to each connected face.

void	flipNormal () noexcept
	Flip the normal vector.

Vec3T< T > &	getPosition () noexcept
	Return modifiable vertex position.

const Vec3T< T > &	getPosition () const noexcept
	Return immutable vertex position.

Vec3T< T > &	getNormal () noexcept
	Return modifiable vertex normal vector.

const Vec3T< T > &	getNormal () const noexcept
	Return immutable vertex normal vector.

EdgePtr	getOutgoingEdge () noexcept
	Get the outgoing edge.

EdgePtr	getOutgoingEdge () const noexcept
	Get the outgoing edge (const overload).

std::vector< FacePtr > &	getFaces () noexcept
	Get modifiable polygon face list for this vertex.

const std::vector< FacePtr > &	getFaces () const noexcept
	Get immutable polygon face list for this vertex.

T	signedDistance (const Vec3 &a_x0) const noexcept
	Get the signed distance to this vertex.

T	unsignedDistance2 (const Vec3 &a_x0) const noexcept
	Get the squared unsigned distance to this vertex.

Meta &	getMetaData () noexcept
	Get meta-data.

const Meta &	getMetaData () const noexcept
	Get meta-data.

Protected Attributes
std::weak_ptr< Edge >	m_outgoingEdge
	Pointer to an outgoing edge from this vertex.

Vec3	m_position
	Vertex position.

Vec3	m_normal
	Vertex normal vector.

std::vector< FacePtr >	m_faces
	List of faces connected to this vertex.

Meta	m_metaData {}
	Meta-data for this vertex.

Detailed Description

template<class T, class Meta>
class EBGeometry::DCEL::VertexT< T, Meta >

Vertex class for navigating a DCEL mesh.

Class which represents a vertex node in a double-edge connected list (DCEL).

Template Parameters

T	Floating-point precision type.
Meta	User-defined metadata type.

This class is used in DCEL functionality which stores polygonal surfaces in a mesh. The VertexT class has a position, a normal vector, and a pointer to one of the outgoing edges from the vertex. For performance reasons we also include pointers to all the polygon faces that share this vertex.

Note: The normal vector is outgoing, i.e. a point x is "outside" the vertex if the dot product between n and (x - x0) is positive.

Template Parameters

T	Floating-point precision.
Meta	Meta-data type stored per vertex.

Constructor & Destructor Documentation

◆ VertexT() [1/5]

template<class T , class Meta >

EBGeometry::DCEL::VertexT< T, Meta >::VertexT ( )

default

Default constructor.

Defaulted: the position and normal vectors zero-initialize via Vec3T's own default constructor, the outgoing edge pointer defaults to null, the face list defaults to empty, and the meta-data value-initializes (see m_metaData). Not marked noexcept since Meta is an unconstrained template parameter whose default constructor is not guaranteed to be noexcept.

◆ VertexT() [2/5]

template<class T , class Meta >

EBGeometry::DCEL::VertexT< T, Meta >::VertexT ( const Vec3 & a_position )

Partial constructor.

Parameters

[in] a_position Vertex position

This initializes the position to a_position and the normal vector to the zero vector. The polygon face list is empty.

◆ VertexT() [3/5]

template<class T , class Meta >

EBGeometry::DCEL::VertexT< T, Meta >::VertexT	(	const Vec3 &	a_position,
		const Vec3 &	a_normal
	)

Constructor.

Parameters

[in]	a_position	Vertex position
[in]	a_normal	Vertex normal vector

This initializes the position to a_position and the normal vector to a_normal. The polygon face list is empty.

◆ VertexT() [4/5]

template<class T , class Meta >

EBGeometry::DCEL::VertexT< T, Meta >::VertexT ( const Vertex & a_otherVertex )

Copy constructor.

Parameters

[in] a_otherVertex Other vertex.

Copies only the position, normal vector, and outgoing edge pointer from the other vertex. The polygon face list (m_faces) and meta-data (m_metaData) are deliberately NOT copied – they default-construct empty/default instead; use addFace()/setMetaData() afterwards if they need to be populated. Rationale: m_faces and m_outgoingEdge are back-references into a specific mesh's topology (the faces/edges they point to still reference the original vertex, not this copy), so copying them wholesale would not be topologically meaningful; only the geometric value (position, normal) survives a copy. operator=(const Vertex&) has identical semantics.

◆ VertexT() [5/5]

template<class T , class Meta >

EBGeometry::DCEL::VertexT< T, Meta >::VertexT ( Vertex && a_otherVertex )

default

Move constructor.

Unlike the copy constructor, this transfers the entire state (including m_faces and m_metaData) from a_otherVertex, since moving relocates a single object's identity rather than grafting a copy into a different mesh's topology. Defaulted (memberwise move) rather than hand-written: explicitly defaulting is required here since the presence of a user-declared copy constructor would otherwise suppress the implicitly-generated move constructor. Not marked noexcept since Meta is an unconstrained template parameter whose move constructor is not guaranteed to be noexcept.

Parameters

[in,out] a_otherVertex Other vertex.

Member Function Documentation

◆ addFace()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::addFace ( const FacePtr & a_face )

inline

Add a face to the polygon face list.

Parameters

[in] a_face Pointer to face.

◆ computeVertexNormalAngleWeighted() [1/2]

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::computeVertexNormalAngleWeighted ( )

inline

Compute the vertex normal, using the pseudonormal algorithm which weights the normal with the subtended angle to each connected face.

This calls the other version with a_faces = m_faces

Note: This computes the normal vector using the pseudnormal algorithm from Baerentzen and Aanes in "Signed distance computation using the angle weighted pseudonormal" (DOI: 10.1109/TVCG.2005.49)

◆ computeVertexNormalAngleWeighted() [2/2]

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::computeVertexNormalAngleWeighted ( const std::vector< FacePtr > & a_faces )

inline

Compute the vertex normal, using the pseudonormal algorithm which weights the normal with the subtended angle to each connected face.

Parameters

[in] a_faces Faces to use for computation.

Note: This computes the normal vector using the pseudnormal algorithm from Baerentzen and Aanes in "Signed distance computation using the angle weighted pseudonormal" (DOI: 10.1109/TVCG.2005.49)

◆ computeVertexNormalAverage()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::computeVertexNormalAverage ( const std::vector< FacePtr > & a_faces )

inlinenoexcept

Compute the vertex normal, using an average of the normal vectors in the input face list.

Parameters

[in] a_faces Faces

Note: This computes the vertex normal as n = sum(normal(face))/num(faces)

◆ define()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::define	(	const Vec3 &	a_position,
		const EdgePtr &	a_edge,
		const Vec3 &	a_normal
	)

inlinenoexcept

Define function.

Parameters

[in]	a_position	Vertex position
[in]	a_edge	Pointer to outgoing edge
[in]	a_normal	Vertex normal vector

This sets the position, normal vector, and edge pointer.

◆ getFaces() [1/2]

template<class T , class Meta >

const std::vector< FacePtr > & EBGeometry::DCEL::VertexT< T, Meta >::getFaces ( ) const

inlinenoexcept

Get immutable polygon face list for this vertex.

Returns: Const reference to m_faces.

◆ getFaces() [2/2]

template<class T , class Meta >

std::vector< FacePtr > & EBGeometry::DCEL::VertexT< T, Meta >::getFaces ( )

inlinenoexcept

Get modifiable polygon face list for this vertex.

Returns: Reference to m_faces.

◆ getMetaData() [1/2]

template<class T , class Meta >

const Meta & EBGeometry::DCEL::VertexT< T, Meta >::getMetaData ( ) const

inlinenoexcept

Get meta-data.

Returns: m_metaData

◆ getMetaData() [2/2]

template<class T , class Meta >

Meta & EBGeometry::DCEL::VertexT< T, Meta >::getMetaData ( )

inlinenoexcept

Get meta-data.

Returns: m_metaData

◆ getNormal() [1/2]

template<class T , class Meta >

const Vec3T< T > & EBGeometry::DCEL::VertexT< T, Meta >::getNormal ( ) const

inlinenoexcept

Return immutable vertex normal vector.

Returns: Const reference to m_normal.

◆ getNormal() [2/2]

template<class T , class Meta >

Vec3T< T > & EBGeometry::DCEL::VertexT< T, Meta >::getNormal ( )

inlinenoexcept

Return modifiable vertex normal vector.

Returns: Reference to m_normal.

◆ getOutgoingEdge() [1/2]

template<class T , class Meta >

EdgePtr EBGeometry::DCEL::VertexT< T, Meta >::getOutgoingEdge ( ) const

inlinenoexcept

Get the outgoing edge (const overload).

Returns: Outgoing edge, or nullptr.

◆ getOutgoingEdge() [2/2]

template<class T , class Meta >

EdgePtr EBGeometry::DCEL::VertexT< T, Meta >::getOutgoingEdge ( )

inlinenoexcept

Get the outgoing edge.

Returns a shared_ptr obtained by locking the internal weak_ptr (see the class-level note on ownership near m_outgoingEdge). Returns nullptr if the edge has been destroyed, which should not happen while the owning mesh is alive.

Returns: Outgoing edge, or nullptr.

◆ getPosition() [1/2]

template<class T , class Meta >

const Vec3T< T > & EBGeometry::DCEL::VertexT< T, Meta >::getPosition ( ) const

inlinenoexcept

Return immutable vertex position.

Returns: Const reference to m_position.

◆ getPosition() [2/2]

template<class T , class Meta >

Vec3T< T > & EBGeometry::DCEL::VertexT< T, Meta >::getPosition ( )

inlinenoexcept

Return modifiable vertex position.

Returns: Reference to m_position.

◆ normalizeNormalVector()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::normalizeNormalVector ( )

inlinenoexcept

Normalize the normal vector, ensuring its length is 1.

The current normal must not be (near-)zero-length; a zero-length normal cannot be normalized and is left unchanged (a no-op) rather than dividing by zero.

◆ operator=() [1/2]

template<class T , class Meta >

Vertex & EBGeometry::DCEL::VertexT< T, Meta >::operator= ( const Vertex & a_otherVertex )

Copy assignment operator.

Has the same narrow-copy semantics as the copy constructor (including that m_faces and m_metaData are not copied; use addFace()/setMetaData() afterwards if they need to be populated). See the copy constructor's documentation for details.

Parameters

[in] a_otherVertex Other vertex.

Returns: Reference to (*this).

◆ operator=() [2/2]

template<class T , class Meta >

Vertex & EBGeometry::DCEL::VertexT< T, Meta >::operator= ( Vertex && a_otherVertex )

default

Move assignment operator.

Has the same full-state-transfer semantics as the move constructor (defaulted memberwise move; see its documentation for why this must be defaulted explicitly).

Parameters

[in,out] a_otherVertex Other vertex.

Returns: Reference to (*this).

◆ setEdge()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::setEdge ( const EdgePtr & a_edge )

inlinenoexcept

Set the reference to the outgoing edge.

Parameters

[in] a_edge Pointer to an outgoing edge

◆ setMetaData()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::setMetaData ( const Meta & a_metaData )

inlinenoexcept

Set the meta-data.

Parameters

[in] a_metaData Meta-data.

◆ setNormal()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::setNormal ( const Vec3 & a_normal )

inlinenoexcept

Set the vertex normal vector.

Parameters

[in] a_normal Vertex normal vector

◆ setPosition()

template<class T , class Meta >

void EBGeometry::DCEL::VertexT< T, Meta >::setPosition ( const Vec3 & a_position )

inlinenoexcept

Set the vertex position.

Parameters

[in] a_position Vertex position

◆ signedDistance()

template<class T , class Meta >

T EBGeometry::DCEL::VertexT< T, Meta >::signedDistance ( const Vec3 & a_x0 ) const

inlinenoexcept

Get the signed distance to this vertex.

Parameters

[in] a_x0 Position in space.

Returns: The returned distance is |a_x0 - m_position| and the sign is given by the sign of m_normal * |a_x0 - m_position|.

◆ unsignedDistance2()

template<class T , class Meta >

T EBGeometry::DCEL::VertexT< T, Meta >::unsignedDistance2 ( const Vec3 & a_x0 ) const

inlinenoexcept

Get the squared unsigned distance to this vertex.

This is faster to compute than signedDistance, and might be preferred for some algorithms.

Parameters

[in] a_x0 Query position.

Returns: Squared Euclidean distance |a_x0 - m_position|^2.

Member Data Documentation

◆ m_faces

template<class T , class Meta >

std::vector<FacePtr> EBGeometry::DCEL::VertexT< T, Meta >::m_faces

protected

List of faces connected to this vertex.

These must be added by addFace(), and is used when computing the vertex normal vector.

◆ m_metaData

template<class T , class Meta >

Meta EBGeometry::DCEL::VertexT< T, Meta >::m_metaData {}

protected

Meta-data for this vertex.

Value-initialized so that every constructor leaves it in a defined state: for a fundamental Meta type (e.g. short, int), a member with no initializer and no explicit mention in a constructor's member-initializer list is left indeterminate, not zero.

◆ m_outgoingEdge

template<class T , class Meta >

std::weak_ptr<Edge> EBGeometry::DCEL::VertexT< T, Meta >::m_outgoingEdge

protected

Pointer to an outgoing edge from this vertex.

Stored as a weak_ptr: the edge is owned by the mesh's own edge list, and a plain shared_ptr here would form a reference cycle with EdgeT::m_vertex (and, transitively, with EdgeT::m_nextEdge/m_pairEdge/m_face and FaceT::m_halfEdge) that shared_ptr's reference counting can never collect.

The documentation for this class was generated from the following files:

Source/EBGeometry_DCEL.hpp
Source/EBGeometry_DCEL_Vertex.hpp

Public Types

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VertexT() [1/5]

◆ VertexT() [2/5]

◆ VertexT() [3/5]

◆ VertexT() [4/5]

◆ VertexT() [5/5]

Member Function Documentation

◆ addFace()

◆ computeVertexNormalAngleWeighted() [1/2]

◆ computeVertexNormalAngleWeighted() [2/2]

◆ computeVertexNormalAverage()

◆ define()

◆ getFaces() [1/2]

◆ getFaces() [2/2]

◆ getMetaData() [1/2]

◆ getMetaData() [2/2]

◆ getNormal() [1/2]

◆ getNormal() [2/2]

◆ getOutgoingEdge() [1/2]

◆ getOutgoingEdge() [2/2]

◆ getPosition() [1/2]

◆ getPosition() [2/2]

◆ normalizeNormalVector()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ setEdge()

◆ setMetaData()

◆ setNormal()

◆ setPosition()

◆ signedDistance()

◆ unsignedDistance2()

Member Data Documentation

◆ m_faces

◆ m_metaData

◆ m_outgoingEdge
