Class for storing VTK Polydata meshes. More...

#include <EBGeometry_VTK.hpp>

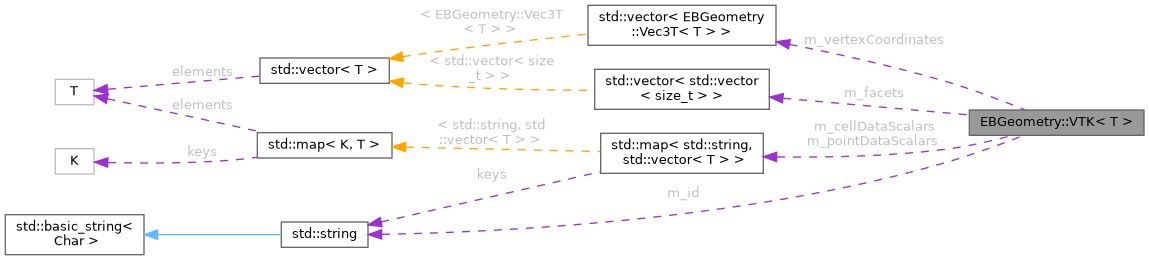

Collaboration diagram for EBGeometry::VTK< T >:

[legend]

Public Member Functions
	VTK () noexcept=default
	Default constructor. Initializes empty member data holder.

	VTK (const std::string &a_id) noexcept
	Constructor. Initializes empty vertices and facets but sets the VTK ID (usually the file name.

	VTK (const VTK &a_other)=default
	Copy constructor.

	VTK (VTK &&a_other) noexcept=default
	Move constructor.

VTK &	operator= (const VTK &a_other)=default
	Copy assignment operator.

VTK &	operator= (VTK &&a_other) noexcept=default
	Move assignment operator.

	~VTK () noexcept=default
	Destructor. Clears all data.

std::string &	getID () noexcept
	Get the identifier for this object.

const std::string &	getID () const noexcept
	Get the identifier for this object.

std::vector< Vec3T< T > > &	getVertexCoordinates () noexcept
	Get the vertex coordinates.

const std::vector< Vec3T< T > > &	getVertexCoordinates () const noexcept
	Get the vertex coordinates.

std::vector< std::vector< size_t > > &	getFacets () noexcept
	Get the face indices.

const std::vector< std::vector< size_t > > &	getFacets () const noexcept
	Get the face indices.

std::vector< T > &	getPointDataScalars (const std::string a_name)
	Get the point data scalars.

const std::vector< T > &	getPointDataScalars (const std::string a_name) const
	Get the point data scalars.

std::vector< T > &	getCellDataScalars (const std::string a_name)
	Get the cell data scalars.

const std::vector< T > &	getCellDataScalars (const std::string a_name) const
	Get the cell data scalars.

void	setPointDataScalars (const std::string a_name, std::vector< T > a_data)
	Set point data scalars.

void	setCellDataScalars (const std::string a_name, std::vector< T > a_data)
	Set cell data scalars.

template<typename Meta >
std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > >	convertToDCEL () const noexcept
	Turn the VTK mesh into a DCEL mesh.

Protected Attributes
std::string	m_id
	VTK object ID.

std::vector< Vec3T< T > >	m_vertexCoordinates
	Vertex coordinates.

std::vector< std::vector< size_t > >	m_facets
	Faces – each entry in the outer vector contains the indices defining one face.

std::map< std::string, std::vector< T > >	m_pointDataScalars
	Point data scalar arrays.

std::map< std::string, std::vector< T > >	m_cellDataScalars
	Cell data scalar arrays.

Detailed Description

template<typename T>
class EBGeometry::VTK< T >

Class for storing VTK Polydata meshes.

Template Parameters

T	Floating-point precision for vertex coordinates and scalar arrays.

Constructor & Destructor Documentation

◆ VTK() [1/3]

template<typename T >

EBGeometry::VTK< T >::VTK ( const std::string & a_id )

noexcept

Constructor. Initializes empty vertices and facets but sets the VTK ID (usually the file name.

Parameters

[in] a_id Identifier for VTK object

◆ VTK() [2/3]

template<typename T >

EBGeometry::VTK< T >::VTK ( const VTK< T > & a_other )

default

Copy constructor.

Parameters

[in] a_other Other VTK object.

◆ VTK() [3/3]

template<typename T >

EBGeometry::VTK< T >::VTK ( VTK< T > && a_other )

defaultnoexcept

Move constructor.

Parameters

[in,out] a_other Other VTK object.

Member Function Documentation

◆ convertToDCEL()

template<typename T >

template<typename Meta >

std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > > EBGeometry::VTK< T >::convertToDCEL ( ) const

noexcept

Turn the VTK mesh into a DCEL mesh.

This call does not populate any meta-data in the DCEL mesh structures. If you need to also populate the meta-data on vertices and faces, you should not use this function but supply your own constructor.

Template Parameters

Meta	Metadata type attached to DCEL vertices, edges, and faces.

Returns: Shared pointer to the constructed DCEL mesh.

◆ getCellDataScalars() [1/2]

template<typename T >

std::vector< T > & EBGeometry::VTK< T >::getCellDataScalars ( const std::string a_name )

Get the cell data scalars.

Parameters

[in] a_name Scalar array name

Note: Function will throw std::out_of_range if the array does not exist

Returns: m_cellDataScalars at provided name

◆ getCellDataScalars() [2/2]

template<typename T >

const std::vector< T > & EBGeometry::VTK< T >::getCellDataScalars ( const std::string a_name ) const

Get the cell data scalars.

Parameters

[in] a_name Scalar array name

Note: Function will throw std::out_of_range if the array does not exist

Returns: m_cellDataScalars at provided name

◆ getFacets() [1/2]

template<typename T >

const std::vector< std::vector< size_t > > & EBGeometry::VTK< T >::getFacets ( ) const

noexcept

Get the face indices.

Returns: m_facets

◆ getFacets() [2/2]

template<typename T >

std::vector< std::vector< size_t > > & EBGeometry::VTK< T >::getFacets ( )

noexcept

Get the face indices.

Returns: m_facets

◆ getID() [1/2]

template<typename T >

const std::string & EBGeometry::VTK< T >::getID ( ) const

noexcept

Get the identifier for this object.

Returns: Const reference to the VTK object identifier.

◆ getID() [2/2]

template<typename T >

std::string & EBGeometry::VTK< T >::getID ( )

noexcept

Get the identifier for this object.

Returns: Reference to the VTK object identifier.

◆ getPointDataScalars() [1/2]

template<typename T >

std::vector< T > & EBGeometry::VTK< T >::getPointDataScalars ( const std::string a_name )

Get the point data scalars.

Parameters

[in] a_name Scalar array name

Note: Function will throw std::out_of_range if the array does not exist

Returns: m_pointDataScalars at provided name

◆ getPointDataScalars() [2/2]

template<typename T >

const std::vector< T > & EBGeometry::VTK< T >::getPointDataScalars ( const std::string a_name ) const

Get the point data scalars.

Parameters

[in] a_name Scalar array name

Note: Function will throw std::out_of_range if the array does not exist

Returns: m_pointDataScalars at provided name

◆ getVertexCoordinates() [1/2]

template<typename T >

const std::vector< Vec3T< T > > & EBGeometry::VTK< T >::getVertexCoordinates ( ) const

noexcept

Get the vertex coordinates.

Returns: m_vertexCoordinates

◆ getVertexCoordinates() [2/2]

template<typename T >

std::vector< Vec3T< T > > & EBGeometry::VTK< T >::getVertexCoordinates ( )

noexcept

Get the vertex coordinates.

Returns: m_vertexCoordinates

◆ operator=() [1/2]

template<typename T >

VTK & EBGeometry::VTK< T >::operator= ( const VTK< T > & a_other )

default

Copy assignment operator.

Parameters

[in] a_other Other VTK object.

Returns: Reference to (*this).

◆ operator=() [2/2]

template<typename T >

VTK & EBGeometry::VTK< T >::operator= ( VTK< T > && a_other )

defaultnoexcept

Move assignment operator.

Parameters

[in,out] a_other Other VTK object.

Returns: Reference to (*this).

◆ setCellDataScalars()

template<typename T >

void EBGeometry::VTK< T >::setCellDataScalars	(	const std::string	a_name,
		std::vector< T >	a_data
	)

Set cell data scalars.

Parameters

[in]	a_name	Array name
[in]	a_data	Array data

◆ setPointDataScalars()

template<typename T >

void EBGeometry::VTK< T >::setPointDataScalars	(	const std::string	a_name,
		std::vector< T >	a_data
	)

Set point data scalars.

Parameters

[in]	a_name	Array name
[in]	a_data	Array data

The documentation for this class was generated from the following file:

Source/EBGeometry_VTK.hpp
