Implicit function whose interior is a smoothly blended intersection of all input function interiors. More...
#include <EBGeometry_CSG.hpp>
Inheritance diagram for EBGeometry::SmoothIntersectionIF< T >:

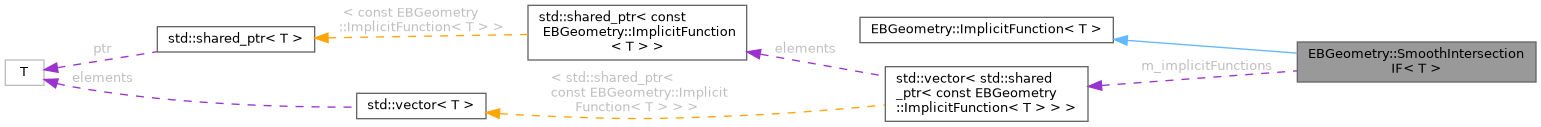

Collaboration diagram for EBGeometry::SmoothIntersectionIF< T >:
Public Member Functions | |
| SmoothIntersectionIF ()=delete | |
| Disallowed, use the full constructor. | |
| SmoothIntersectionIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionA, const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionB, const T a_smoothLen, const std::function< T(const T &a, const T &b, const T &s)> &a_smoothMax=SmoothMax< T >) noexcept | |
| Constructs the smooth intersection of two implicit functions. | |
| SmoothIntersectionIF (const std::vector< std::shared_ptr< ImplicitFunction< T > > > &a_implicitFunctions, const T a_smoothLen, const std::function< T(const T &a, const T &b, const T &s)> &a_smoothMax=SmoothMax< T >) noexcept | |
| Constructs the smooth intersection of a list of implicit functions. | |
| ~SmoothIntersectionIF () override=default | |
| Destructor. | |
| T | value (const Vec3T< T > &a_point) const noexcept override |
| Evaluates the smoothly blended signed distance at a_point. | |
 Public Member Functions inherited from EBGeometry::ImplicitFunction< T > | |
| ImplicitFunction ()=default | |
| Default constructor. | |
| virtual | ~ImplicitFunction ()=default |
| Default destructor. | |
| T | operator() (const Vec3T< T > &a_point) const noexcept |
| Call operator — alternative signature for the value function. | |
| template<class BV > | |
| BV | approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const |
| Compute an approximation to the bounding volume for the implicit surface using octree subdivision. | |
Protected Attributes | |
| std::vector< std::shared_ptr< const ImplicitFunction< T > > > | m_implicitFunctions |
| Stored implicit functions. | |
| T | m_smoothLen |
| Smoothing length. | |
| std::function< T(const T &a, const T &b, const T &s)> | m_smoothMax |
| Smooth-maximum operator. | |
Detailed Description
template<class T>
class EBGeometry::SmoothIntersectionIF< T >
class EBGeometry::SmoothIntersectionIF< T >
Implicit function whose interior is a smoothly blended intersection of all input function interiors.
Replaces the sharp max of IntersectionIF with a smooth-maximum operator, yielding a C1 (or better) interface at intersection boundaries. Only the two largest values are blended; the blend region width is controlled by m_smoothLen.
- Template Parameters
-
T Floating-point precision.
Constructor & Destructor Documentation
◆ SmoothIntersectionIF() [1/2]
template<class T >
|
noexcept |
Constructs the smooth intersection of two implicit functions.
- Parameters
-
[in] a_implicitFunctionA First implicit function (must not be null). [in] a_implicitFunctionB Second implicit function (must not be null). [in] a_smoothLen Smoothing length (must be > 0). [in] a_smoothMax Smooth-maximum operator; defaults to SmoothMax<T>.
◆ SmoothIntersectionIF() [2/2]
template<class T >
|
noexcept |
Constructs the smooth intersection of a list of implicit functions.
- Parameters
-
[in] a_implicitFunctions List of implicit functions (must be non-empty; no null entries). [in] a_smoothLen Smoothing length (must be > 0). [in] a_smoothMax Smooth-maximum operator; defaults to SmoothMax<T>.
Member Function Documentation
◆ value()
template<class T >
|
overridevirtualnoexcept |
Evaluates the smoothly blended signed distance at a_point.
Finds the two largest function values and applies the stored smooth-maximum operator. Negative when inside the smooth intersection.
- Parameters
-
[in] a_point 3D query point.
- Returns
- Smooth maximum signed distance value.
Implements EBGeometry::ImplicitFunction< T >.
The documentation for this class was generated from the following file:
- Source/EBGeometry_CSG.hpp
