EBGeometry::IntersectionIF< T > Class Template Reference

Implicit function whose interior is the intersection of all input function interiors. More...

#include <EBGeometry_CSG.hpp>

Inheritance diagram for EBGeometry::IntersectionIF< T >:

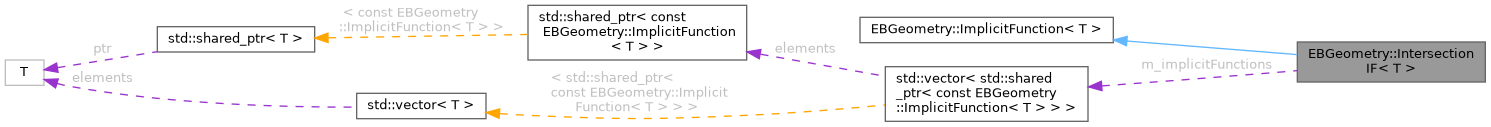

Collaboration diagram for EBGeometry::IntersectionIF< T >:

Public Member Functions
	IntersectionIF ()=delete
	Disallowed, use the full constructor.
	IntersectionIF (const std::vector< std::shared_ptr< ImplicitFunction< T > > > &a_implicitFunctions) noexcept
	Constructs the intersection of the given implicit functions.
	~IntersectionIF () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept override
	Evaluates the signed distance at a_point.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Attributes
std::vector< std::shared_ptr< const ImplicitFunction< T > > >	m_implicitFunctions
	Stored implicit functions.

Detailed Description

template<class T>
class EBGeometry::IntersectionIF< T >

Implicit function whose interior is the intersection of all input function interiors.

A point is inside IntersectionIF if and only if it is inside every stored function. The value at any point is the maximum over all stored functions; a negative value indicates membership in the intersection.

Template Parameters

T	Floating-point precision.

Constructor & Destructor Documentation

IntersectionIF()

template<class T >

EBGeometry::IntersectionIF< T >::IntersectionIF ( const std::vector< std::shared_ptr< ImplicitFunction< T > > > &  a_implicitFunctions )

noexcept

Constructs the intersection of the given implicit functions.

Parameters

[in]

a_implicitFunctions

List of implicit functions (must be non-empty; no null entries).

Member Function Documentation

value()

template<class T >

T EBGeometry::IntersectionIF< T >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Evaluates the signed distance at a_point.

Returns the maximum over all stored functions. Negative when inside the intersection.

Parameters

[in]

a_point

3D query point.

Returns

Maximum signed distance value among all stored functions.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_CSG.hpp
