Implicit function representing a smoothly blended set difference A \ B. More...
#include <EBGeometry_CSG.hpp>
Inheritance diagram for EBGeometry::SmoothDifferenceIF< T >:

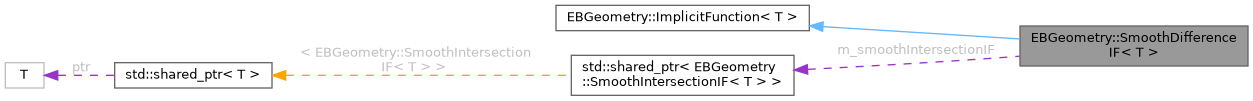

Collaboration diagram for EBGeometry::SmoothDifferenceIF< T >:
Public Member Functions | |
| SmoothDifferenceIF ()=delete | |
| Disallowed, use the full constructor. | |
| SmoothDifferenceIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionA, const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionB, const T a_smoothLen, const std::function< T(const T &a, const T &b, const T &s)> &a_smoothMax=SmoothMax< T >) noexcept | |
| Constructs the smooth difference A \ B from two implicit functions. | |
| SmoothDifferenceIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionA, const std::vector< std::shared_ptr< ImplicitFunction< T > > > &a_implicitFunctionsB, const T a_smoothLen, const std::function< T(const T &a, const T &b, const T &s)> &a_smoothMax=SmoothMax< T >) noexcept | |
| Constructs the smooth difference A \ union(Bs) from A and a list of subtrahends. | |
| ~SmoothDifferenceIF () override=default | |
| Destructor. | |
| T | value (const Vec3T< T > &a_point) const noexcept override |
| Evaluates the smoothly blended signed distance at a_point. | |
 Public Member Functions inherited from EBGeometry::ImplicitFunction< T > | |
| ImplicitFunction ()=default | |
| Default constructor. | |
| virtual | ~ImplicitFunction ()=default |
| Default destructor. | |
| T | operator() (const Vec3T< T > &a_point) const noexcept |
| Call operator — alternative signature for the value function. | |
| template<class BV > | |
| BV | approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const |
| Compute an approximation to the bounding volume for the implicit surface using octree subdivision. | |
Protected Attributes | |
| std::shared_ptr< SmoothIntersectionIF< T > > | m_smoothIntersectionIF |
| Internal smooth intersection implementing smooth(A ∩ complement(B)). | |
Detailed Description
template<class T>
class EBGeometry::SmoothDifferenceIF< T >
class EBGeometry::SmoothDifferenceIF< T >
Implicit function representing a smoothly blended set difference A \ B.
Implemented as a smooth intersection of A with the complement of B. A point is near-inside if it is inside A and outside (or near-outside) B; the interface is smoothed over a region of width m_smoothLen.
- Template Parameters
-
T Floating-point precision.
Constructor & Destructor Documentation
◆ SmoothDifferenceIF() [1/2]
template<class T >
|
noexcept |
Constructs the smooth difference A \ B from two implicit functions.
- Parameters
-
[in] a_implicitFunctionA Minuend (must not be null). [in] a_implicitFunctionB Subtrahend (must not be null). [in] a_smoothLen Smoothing length (must be > 0). [in] a_smoothMax Smooth-maximum operator; defaults to SmoothMax<T>.
◆ SmoothDifferenceIF() [2/2]
template<class T >
|
noexcept |
Constructs the smooth difference A \ union(Bs) from A and a list of subtrahends.
- Parameters
-
[in] a_implicitFunctionA Minuend (must not be null). [in] a_implicitFunctionsB Subtrahends (must be non-empty; no null entries). [in] a_smoothLen Smoothing length (must be > 0). [in] a_smoothMax Smooth-maximum operator; defaults to SmoothMax<T>.
Member Function Documentation
◆ value()
template<class T >
|
overridevirtualnoexcept |
Evaluates the smoothly blended signed distance at a_point.
Delegates to the internal SmoothIntersectionIF of A with the complement of B.
- Parameters
-
[in] a_point 3D query point.
- Returns
- Smooth signed distance representing A \ B.
Implements EBGeometry::ImplicitFunction< T >.
The documentation for this class was generated from the following file:
- Source/EBGeometry_CSG.hpp
