Class for storing Stanford PLY meshes. More...

#include <EBGeometry_PLY.hpp>

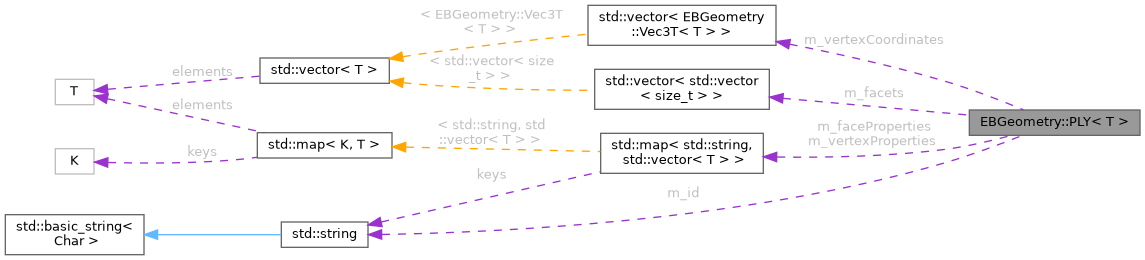

Collaboration diagram for EBGeometry::PLY< T >:

[legend]

Public Member Functions
	PLY () noexcept=default
	Default constructor. Initializes empty member data holder.

	PLY (const std::string &a_id) noexcept
	Constructor. Initializes empty vertices and facets but sets the PLY ID (usually the file name.

	PLY (const PLY &a_other)=default
	Copy constructor.

	PLY (PLY &&a_other) noexcept=default
	Move constructor.

PLY &	operator= (const PLY &a_other)=default
	Copy assignment operator.

PLY &	operator= (PLY &&a_other) noexcept=default
	Move assignment operator.

	~PLY () noexcept=default
	Destructor (does nothing).

std::string &	getID () noexcept
	Get the identifier for this object.

const std::string &	getID () const noexcept
	Get the identifier for this object.

std::vector< Vec3T< T > > &	getVertexCoordinates () noexcept
	Get the vertex coordinates.

const std::vector< Vec3T< T > > &	getVertexCoordinates () const noexcept
	Get the vertex coordinates.

std::vector< std::vector< size_t > > &	getFacets () noexcept
	Get the face indices.

const std::vector< std::vector< size_t > > &	getFacets () const noexcept
	Get the face indices.

std::vector< T > &	getVertexProperties (const std::string a_property)
	Get the vertex properties.

const std::vector< T > &	getVertexProperties (const std::string a_property) const
	Get the vertex properties.

std::vector< T > &	getFaceProperties (const std::string a_property)
	Get the face properties.

const std::vector< T > &	getFaceProperties (const std::string a_property) const
	Get the face properties (const overload).

void	setVertexProperties (const std::string a_property, std::vector< T > a_data)
	Set vertex properties.

void	setFaceProperties (const std::string a_property, std::vector< T > a_data)
	Set face properties.

template<typename Meta >
std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > >	convertToDCEL () const noexcept
	Turn the PLY mesh into a DCEL mesh.

Protected Attributes
std::string	m_id
	PLY object ID.

std::vector< Vec3T< T > >	m_vertexCoordinates
	Vertex coordinates.

std::vector< std::vector< size_t > >	m_facets
	Faces – each entry in the outer vector contains the indices defining one face.

std::map< std::string, std::vector< T > >	m_vertexProperties
	Vertex properties.

std::map< std::string, std::vector< T > >	m_faceProperties
	Face properties.

Detailed Description

template<typename T>
class EBGeometry::PLY< T >

Class for storing Stanford PLY meshes.

Template Parameters

T	Floating-point precision for vertex coordinates and scalar properties.

Constructor & Destructor Documentation

◆ PLY() [1/3]

template<typename T >

EBGeometry::PLY< T >::PLY ( const std::string & a_id )

noexcept

Constructor. Initializes empty vertices and facets but sets the PLY ID (usually the file name.

Parameters

[in] a_id Identifier for PLY object

◆ PLY() [2/3]

template<typename T >

EBGeometry::PLY< T >::PLY ( const PLY< T > & a_other )

default

Copy constructor.

Parameters

[in] a_other Other PLY object.

◆ PLY() [3/3]

template<typename T >

EBGeometry::PLY< T >::PLY ( PLY< T > && a_other )

defaultnoexcept

Move constructor.

Parameters

[in,out] a_other Other PLY object.

Member Function Documentation

◆ convertToDCEL()

template<typename T >

template<typename Meta >

std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > > EBGeometry::PLY< T >::convertToDCEL ( ) const

noexcept

Turn the PLY mesh into a DCEL mesh.

This call does not populate any meta-data in the DCEL mesh structures. If you need to also populate the meta-data on vertices and faces, you should not use this function but supply your own constructor.

Template Parameters

Meta	Metadata type attached to DCEL vertices, edges, and faces.

Returns: Shared pointer to the constructed DCEL mesh.

◆ getFaceProperties() [1/2]

template<typename T >

std::vector< T > & EBGeometry::PLY< T >::getFaceProperties ( const std::string a_property )

Get the face properties.

Parameters

[in] a_property Which property to fetch

Note: Function will throw std::out_of_range if the property does not exist

Returns: m_faceProperties at provided property

◆ getFaceProperties() [2/2]

template<typename T >

const std::vector< T > & EBGeometry::PLY< T >::getFaceProperties ( const std::string a_property ) const

Get the face properties (const overload).

Parameters

[in] a_property Which property to fetch.

Note: Function will throw std::out_of_range if the property does not exist.

Returns: Const reference to the face property array at the provided name.

◆ getFacets() [1/2]

template<typename T >

const std::vector< std::vector< size_t > > & EBGeometry::PLY< T >::getFacets ( ) const

noexcept

Get the face indices.

Returns: m_facets

◆ getFacets() [2/2]

template<typename T >

std::vector< std::vector< size_t > > & EBGeometry::PLY< T >::getFacets ( )

noexcept

Get the face indices.

Returns: m_facets

◆ getID() [1/2]

template<typename T >

const std::string & EBGeometry::PLY< T >::getID ( ) const

noexcept

Get the identifier for this object.

Returns: Const reference to the PLY object identifier.

◆ getID() [2/2]

template<typename T >

std::string & EBGeometry::PLY< T >::getID ( )

noexcept

Get the identifier for this object.

Returns: Reference to the PLY object identifier.

◆ getVertexCoordinates() [1/2]

template<typename T >

const std::vector< Vec3T< T > > & EBGeometry::PLY< T >::getVertexCoordinates ( ) const

noexcept

Get the vertex coordinates.

Returns: m_vertexCoordinates

◆ getVertexCoordinates() [2/2]

template<typename T >

std::vector< Vec3T< T > > & EBGeometry::PLY< T >::getVertexCoordinates ( )

noexcept

Get the vertex coordinates.

Returns: m_vertexCoordinates

◆ getVertexProperties() [1/2]

template<typename T >

std::vector< T > & EBGeometry::PLY< T >::getVertexProperties ( const std::string a_property )

Get the vertex properties.

Parameters

[in] a_property Which property to fetch

Note: Function will throw std::out_of_range if the property does not exist

Returns: m_vertexProperties at provided property

◆ getVertexProperties() [2/2]

template<typename T >

const std::vector< T > & EBGeometry::PLY< T >::getVertexProperties ( const std::string a_property ) const

Get the vertex properties.

Parameters

[in] a_property Which property to fetch

Note: Function will throw std::out_of_range if the property does not exist

Returns: m_vertexProperties at provided property

◆ operator=() [1/2]

template<typename T >

PLY & EBGeometry::PLY< T >::operator= ( const PLY< T > & a_other )

default

Copy assignment operator.

Parameters

[in] a_other Other PLY object.

Returns: Reference to (*this).

◆ operator=() [2/2]

template<typename T >

PLY & EBGeometry::PLY< T >::operator= ( PLY< T > && a_other )

defaultnoexcept

Move assignment operator.

Parameters

[in,out] a_other Other PLY object.

Returns: Reference to (*this).

◆ setFaceProperties()

template<typename T >

void EBGeometry::PLY< T >::setFaceProperties	(	const std::string	a_property,
		std::vector< T >	a_data
	)

Set face properties.

Parameters

[in]	a_property	Property name
[in]	a_data	Property data

◆ setVertexProperties()

template<typename T >

void EBGeometry::PLY< T >::setVertexProperties	(	const std::string	a_property,
		std::vector< T >	a_data
	)

Set vertex properties.

Parameters

[in]	a_property	Property name
[in]	a_data	Property data

The documentation for this class was generated from the following file:

Source/EBGeometry_PLY.hpp
