EBGeometry::OBJ< T > Class Template Reference

Class for storing contents of Wavefront OBJ files. More...

#include <EBGeometry_OBJ.hpp>

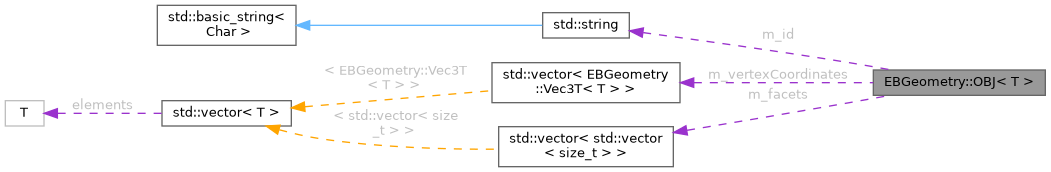

Collaboration diagram for EBGeometry::OBJ< T >:

Public Member Functions
	OBJ () noexcept=default
	Default constructor. Initializes empty member data holder.
	OBJ (const std::string &a_id) noexcept
	Constructor. Initializes empty vertices and facets but sets the OBJ ID (usually the file name.
	OBJ (const OBJ &a_other)=default
	Copy constructor.
	OBJ (OBJ &&a_other) noexcept=default
	Move constructor.
OBJ &	operator= (const OBJ &a_other)=default
	Copy assignment operator.
OBJ &	operator= (OBJ &&a_other) noexcept=default
	Move assignment operator.
	~OBJ () noexcept=default
	Destructor (does nothing).
std::string &	getID () noexcept
	Get the identifier for this object.
const std::string &	getID () const noexcept
	Get the identifier for this object.
std::vector< Vec3T< T > > &	getVertexCoordinates () noexcept
	Get the vertex coordinates.
const std::vector< Vec3T< T > > &	getVertexCoordinates () const noexcept
	Get the vertex coordinates.
std::vector< std::vector< size_t > > &	getFacets () noexcept
	Get the polygon facet indices.
const std::vector< std::vector< size_t > > &	getFacets () const noexcept
	Get the polygon facet indices.
template<typename Meta >
std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > >	convertToDCEL () const noexcept
	Turn the OBJ mesh into a DCEL mesh.

Protected Attributes
std::string	m_id
	OBJ object ID.
std::vector< Vec3T< T > >	m_vertexCoordinates
	Vertex coordinates.
std::vector< std::vector< size_t > >	m_facets
	Polygon facets.

Detailed Description

template<typename T>
class EBGeometry::OBJ< T >

Class for storing contents of Wavefront OBJ files.

This structure is simply used as conversion utility between OBJ files and various EBGeometry objects (triangle soups, DCEL meshes, etc). Only vertex ('v') and face ('f') records are retained; texture/normal indices, groups, and materials are ignored.

Template Parameters

T	Floating-point precision for vertex coordinates.

Constructor & Destructor Documentation

OBJ() [1/3]

template<typename T >

EBGeometry::OBJ< T >::OBJ ( const std::string &  a_id )

noexcept

Constructor. Initializes empty vertices and facets but sets the OBJ ID (usually the file name.

Parameters

[in]

a_id

Identifier for OBJ object

OBJ() [2/3]

template<typename T >

EBGeometry::OBJ< T >::OBJ ( const OBJ< T > &  a_other )

default

Copy constructor.

Parameters

[in]

a_other

Other OBJ object.

OBJ() [3/3]

template<typename T >

EBGeometry::OBJ< T >::OBJ ( OBJ< T > &&  a_other )

defaultnoexcept

Move constructor.

Parameters

[in,out]

a_other

Other OBJ object.

Member Function Documentation

convertToDCEL()

template<typename T >

template<typename Meta >

std::shared_ptr< EBGeometry::DCEL::MeshT< T, Meta > > EBGeometry::OBJ< T >::convertToDCEL ( ) const

noexcept

Turn the OBJ mesh into a DCEL mesh.

This call does not populate any meta-data in the DCEL mesh structures.

Template Parameters

Meta	Metadata type attached to DCEL vertices, edges, and faces.

Returns

Shared pointer to the constructed DCEL mesh.

getFacets() [1/2]

template<typename T >

const std::vector< std::vector< size_t > > & EBGeometry::OBJ< T >::getFacets ( ) const

noexcept

Get the polygon facet indices.

Returns

m_facets

getFacets() [2/2]

template<typename T >

std::vector< std::vector< size_t > > & EBGeometry::OBJ< T >::getFacets ( )

noexcept

Get the polygon facet indices.

Returns

m_facets

getID() [1/2]

template<typename T >

const std::string & EBGeometry::OBJ< T >::getID ( ) const

noexcept

Get the identifier for this object.

Returns

Const reference to the OBJ object identifier.

getID() [2/2]

template<typename T >

std::string & EBGeometry::OBJ< T >::getID ( )

noexcept

Get the identifier for this object.

Returns

Reference to the OBJ object identifier.

getVertexCoordinates() [1/2]

template<typename T >

const std::vector< Vec3T< T > > & EBGeometry::OBJ< T >::getVertexCoordinates ( ) const

noexcept

Get the vertex coordinates.

Returns

m_vertexCoordinates

getVertexCoordinates() [2/2]

template<typename T >

std::vector< Vec3T< T > > & EBGeometry::OBJ< T >::getVertexCoordinates ( )

noexcept

Get the vertex coordinates.

Returns

m_vertexCoordinates

operator=() [1/2]

template<typename T >

OBJ & EBGeometry::OBJ< T >::operator= ( const OBJ< T > &  a_other )

default

Copy assignment operator.

Parameters

[in]

a_other

Other OBJ object.

Returns

Reference to (*this).

operator=() [2/2]

template<typename T >

OBJ & EBGeometry::OBJ< T >::operator= ( OBJ< T > &&  a_other )

defaultnoexcept

Move assignment operator.

Parameters

[in,out]

a_other

Other OBJ object.

Returns

Reference to (*this).

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_OBJ.hpp
