EBGeometry_Render.hpp File Reference

A renderer for looking at shapes: Camera, Settings, Image and Renderer, in namespace Render. More...

#include <atomic>
#include <cstdint>
#include <string>
#include <vector>
#include "EBGeometry_Array.hpp"
#include "EBGeometry_BoundingVolumes.hpp"
#include "EBGeometry_Expr.hpp"
#include "EBGeometry_GPU.hpp"
#include "EBGeometry_Ray.hpp"
#include "EBGeometry_Vec.hpp"
#include "EBGeometry_RenderImplem.hpp"

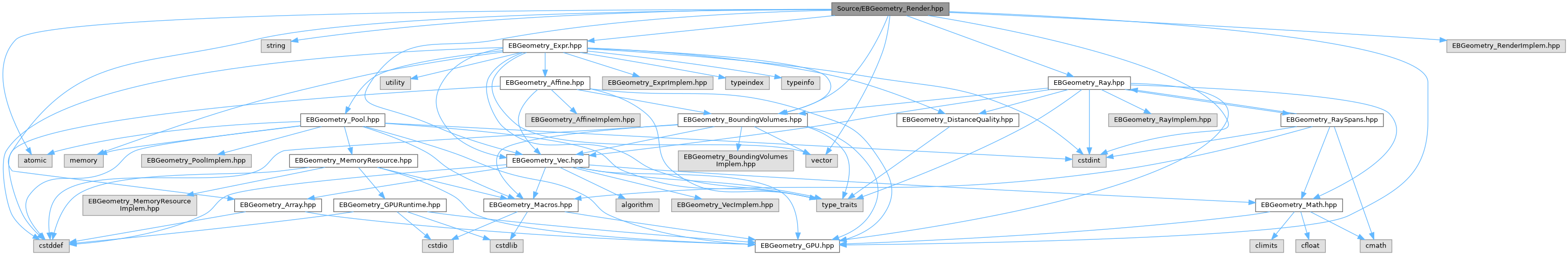

Include dependency graph for EBGeometry_Render.hpp:

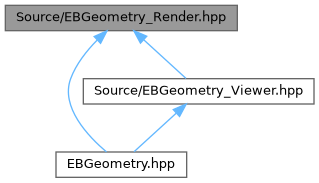

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	EBGeometry::Render::Camera< T >
	A camera orbiting a target point. More...
struct	EBGeometry::Render::Settings< T >
	What to render and how. A plain value; every field has a default. More...
struct	EBGeometry::Render::Image
	An image: width x height pixels, row by row from the top, each 0xRRGGBBAA. More...
struct	EBGeometry::Render::Stats
	What a render saw. More...
struct	EBGeometry::Render::PixelResult
	What PixelQuery computes for one pixel. More...
struct	EBGeometry::Render::RenderDetail::StoredPixel
	A pixel as a render stores it: PixelResult without the object, which is stored apart and only when asked for (Settings::m_recordPrimitives), so that a frame writes and copies 8 bytes per pixel. More...
struct	EBGeometry::Render::RenderDetail::CameraView< T >
	What every pixel needs from the camera, worked out once per frame: the eye, the view's axes and the field of view's slope. More...
struct	EBGeometry::Render::PixelQuery< T, S >
	One pixel of a rendered image: the functor that Renderer runs once per pixel index, on the host or through GPU::parallelFor(). More...
class	EBGeometry::Render::Renderer< T >
	Renders shapes into images. More...

Namespaces
namespace	EBGeometry
	Namespace containing all of EBGeometry's functionality.

Enumerations
enum class	EBGeometry::Render::ColorBy : uint8_t { Uniform , Primitive , Normal }
	How surfaces are colored. More...
enum class	EBGeometry::Render::View : uint8_t {   Front , Back , Right , Left ,   Top , Bottom , Default }
	A direction to look at a box from, for Camera::fit(): along the axes of the plane perpendicular to the up axis (with the default up axis +y, Front looks from +z and Right from +x), or along the up axis. More...

Functions
template<class T >
std::string	EBGeometry::Render::toCode (const Camera< T > &a_camera, const Settings< T > &a_settings)
	A camera and settings as C++ statements that recreate them, for pasting a view found by hand (in Render::view(), key C prints them) into a program.
bool	EBGeometry::Render::writeImage (const Image &a_image, const std::string &a_filename)
	Write an image to a file, as binary PPM (P6: 8 bits per channel, no alpha), which most image programs read.

Variables
template<class S >
constexpr bool	EBGeometry::Render::primitivesAreFaces = false
	Whether a shape's primitives (HitT::m_primitive) are the faces of one object rather than objects: true for the mesh SDFs, whose primitive is a face of the mesh; false for every other shape: a Tape (whose primitives are its leaves), a fused composition and an analytic shape (one object, primitive 0), and a BVH union (a BVHUnion names its members, a BVHSmoothUnion 0).
template<class T >
constexpr bool	EBGeometry::Render::primitivesAreFaces< FlatMeshSDF< T > > = true
	See primitivesAreFaces.
template<class T , size_t K>
constexpr bool	EBGeometry::Render::primitivesAreFaces< MeshSDF< T, K > > = true
	See primitivesAreFaces.
template<class T , size_t K, size_t W>
constexpr bool	EBGeometry::Render::primitivesAreFaces< TriMeshSDF< T, K, W > > = true
	See primitivesAreFaces.

Detailed Description

A renderer for looking at shapes: Camera, Settings, Image and Renderer, in namespace Render.

Renders any shape (see isShape) into an image held in memory, by finding where each camera ray first crosses the surface (firstHit()) and shading it: diffuse and specular light from one direction, light from the sky, soft shadows and ambient occlusion, a floor under the shape, and a section plane that cuts the shape open. A surface the camera sees from inside the solid (a hole seen from within the material, or a mesh whose orientation is inverted) is tinted, so that it cannot be mistaken for an outside. Each pixel is computed by PixelQuery, a trivially copyable functor callable on a device, so Renderer::render() runs it on the host's threads and Renderer::renderOnDevice() runs the same functor through GPU::parallelFor(). Render::view() (EBGeometry_Viewer.hpp) shows a shape in an interactive window, rendered this way.

Author

Robert Marskar

Enumeration Type Documentation

ColorBy

enum class EBGeometry::Render::ColorBy : uint8_t

strong

How surfaces are colored.

Enumerator
Uniform	One color (Settings::m_color) everywhere.
Primitive	A color per primitive: per leaf of a Tape, per face of a mesh SDF (see HitT::m_primitive); Settings::m_primitiveColors, then a built-in palette.
Normal	The surface normal's direction as a color (each component from -1 to 1 mapped to 0 to 1).

View

enum class EBGeometry::Render::View : uint8_t

strong

A direction to look at a box from, for Camera::fit(): along the axes of the plane perpendicular to the up axis (with the default up axis +y, Front looks from +z and Right from +x), or along the up axis.

Enumerator
Front	Yaw 0, pitch 0.
Back	Yaw 180, pitch 0.
Right	Yaw 90, pitch 0.
Left	Yaw -90, pitch 0.
Top	Pitch 90: straight down the up axis.
Bottom	Pitch -90: straight up the up axis.
Default	The default yaw (35) and pitch (25), from above at an angle.

Function Documentation

toCode()

template<class T >

std::string EBGeometry::Render::toCode ( const Camera< T > &  a_camera, const Settings< T > &  a_settings  )

inline

A camera and settings as C++ statements that recreate them, for pasting a view found by hand (in Render::view(), key C prints them) into a program.

Writes camera.m_... = ...; and settings.m_... = ...; for every field that differs from its default, after declarations of camera and settings; T is the precision's name in the code.

Template Parameters

T	Floating-point precision.

Parameters

[in]	a_camera	Camera.
[in]	a_settings	Settings.

Returns

The statements, one per line.

writeImage()

bool EBGeometry::Render::writeImage ( const Image &  a_image, const std::string &  a_filename  )

inline

Write an image to a file, as binary PPM (P6: 8 bits per channel, no alpha), which most image programs read.

Parameters

[in]	a_image	Image.
[in]	a_filename	File to write.

Returns

Whether the file was written (not for an image with fewer pixels than its size).

Variable Documentation

primitivesAreFaces

template<class S >

constexpr bool EBGeometry::Render::primitivesAreFaces = false

inlineconstexpr

Whether a shape's primitives (HitT::m_primitive) are the faces of one object rather than objects: true for the mesh SDFs, whose primitive is a face of the mesh; false for every other shape: a Tape (whose primitives are its leaves), a fused composition and an analytic shape (one object, primitive 0), and a BVH union (a BVHUnion names its members, a BVHSmoothUnion 0).

Template Parameters

S	Shape type.

primitivesAreFaces< FlatMeshSDF< T > >

template<class T >

constexpr bool EBGeometry::Render::primitivesAreFaces< FlatMeshSDF< T > > = true

inlineconstexpr

See primitivesAreFaces.

Template Parameters

T	Floating-point precision.

primitivesAreFaces< MeshSDF< T, K > >

template<class T , size_t K>

constexpr bool EBGeometry::Render::primitivesAreFaces< MeshSDF< T, K > > = true

inlineconstexpr

See primitivesAreFaces.

Template Parameters

T	Floating-point precision.
K	Branching factor.

primitivesAreFaces< TriMeshSDF< T, K, W > >

template<class T , size_t K, size_t W>

constexpr bool EBGeometry::Render::primitivesAreFaces< TriMeshSDF< T, K, W > > = true

inlineconstexpr

See primitivesAreFaces.

Template Parameters

T	Floating-point precision.
K	Branching factor.
W	SIMD width.
