EBGeometry::PODVector< T > Struct Template Reference

Placement-independent descriptor of a POD array inside a Pool. More...

#include <EBGeometry_PODVector.hpp>

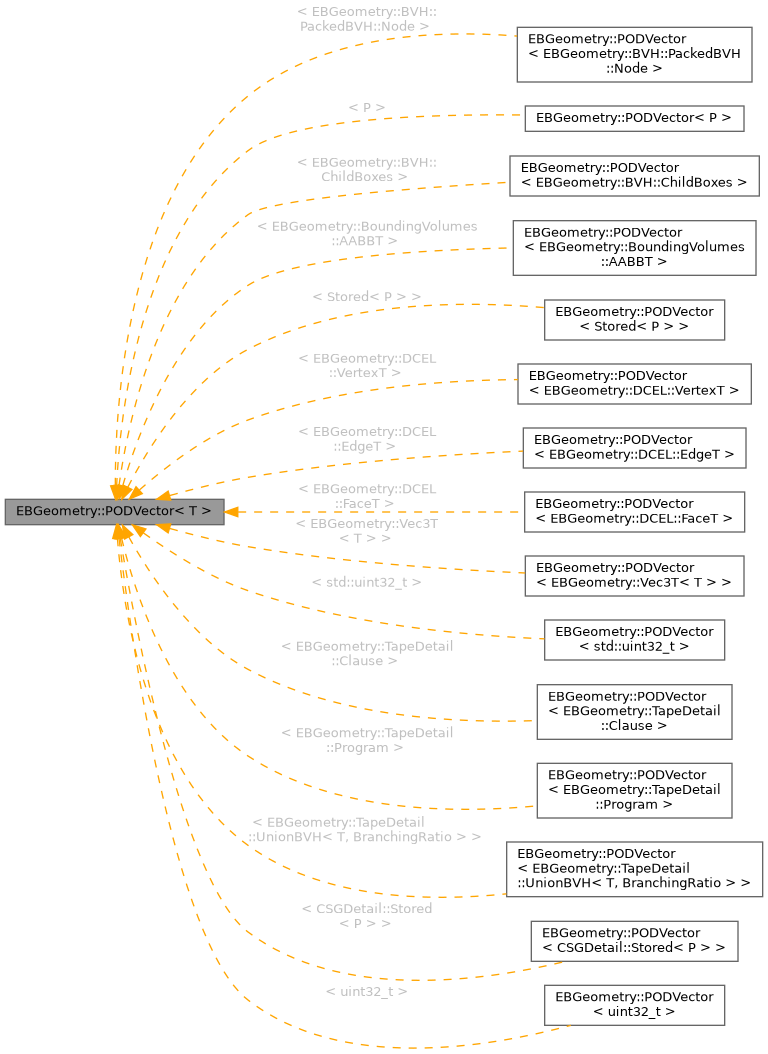

Inheritance diagram for EBGeometry::PODVector< T >:

Public Member Functions
void	reserveFrom (Pool &a_pool, uint32_t a_capacity)
	Reserve a_capacity slots from a_pool, aligned to alignof(T).
T *	data (void *a_base) const noexcept
	Mutable pointer to element 0 against a_base.
const T *	data (const void *a_base) const noexcept
	Const pointer to element 0 against a_base.
T &	at (void *a_base, uint32_t a_i) const noexcept
	Mutable element access against a_base.
const T &	at (const void *a_base, uint32_t a_i) const noexcept
	Const element access against a_base.
uint32_t	size () const noexcept
	Number of constructed elements.
uint64_t	endByte () const noexcept
	One past the last byte this array occupies, measured from the pool base.
bool	empty () const noexcept
	Whether the array is empty.
void	push_back (void *a_base, const T &a_value)
	Append one element into the pre-reserved capacity.
void	assign (void *a_base, const T *a_src, uint32_t a_count)
	Bulk-fill the array from a contiguous host source.
PODSpan< T >	bind (void *a_base) const noexcept
	Bind a mutable raw-pointer view for a hot loop.
PODSpan< const T >	bind (const void *a_base) const noexcept
	Bind a const raw-pointer view for a hot loop.

Public Attributes
uint64_t	m_offset = 0
	Byte offset of element 0 from Pool::base.
uint32_t	m_size = 0
	Number of constructed elements.
uint32_t	m_capacity = 0
	Reserved element slots (fixed after reserveFrom; never reallocates).

Detailed Description

template<class T>
struct EBGeometry::PODVector< T >

Placement-independent descriptor of a POD array inside a Pool.

Stores a byte offset (not a pointer) plus element size and capacity, so the same value resolves against any pool base – the key to zero-patch host-to-device mirroring. Trivially copyable and exactly 16 bytes.

Template Parameters

T	Element type (must be trivially copyable, since it is device-visible storage).

Member Function Documentation

assign()

template<class T >

void EBGeometry::PODVector< T >::assign ( void *  a_base, const T *  a_src, uint32_t  a_count  )

inline

Bulk-fill the array from a contiguous host source.

Copies a_count elements and sets m_size to a_count. A host build-phase operation (the finalize path).

Parameters

[in]	a_base	Base address of the pool holding this array.
[in]	a_src	Source array of at least a_count elements.
[in]	a_count	Number of elements to copy (must be <= m_capacity; aborts otherwise, in every build).

at() [1/2]

template<class T >

const T & EBGeometry::PODVector< T >::at ( const void *  a_base, uint32_t  a_i  ) const

inlinenoexcept

Const element access against a_base.

Parameters

[in]	a_base	Base address of the pool holding this array.
[in]	a_i	Element index (must be < m_size).

Returns

Const reference to element a_i.

at() [2/2]

template<class T >

T & EBGeometry::PODVector< T >::at ( void *  a_base, uint32_t  a_i  ) const

inlinenoexcept

Mutable element access against a_base.

Parameters

[in]	a_base	Base address of the pool holding this array.
[in]	a_i	Element index (must be < m_size).

Returns

Reference to element a_i.

bind() [1/2]

template<class T >

PODSpan< const T > EBGeometry::PODVector< T >::bind ( const void *  a_base ) const

inlinenoexcept

Bind a const raw-pointer view for a hot loop.

The span must not outlive the next reserve on the pool; see PODSpan.

Parameters

[in]

a_base

Current base address of the pool holding this array.

Returns

A PODSpan of const elements over the array.

bind() [2/2]

template<class T >

PODSpan< T > EBGeometry::PODVector< T >::bind ( void *  a_base ) const

inlinenoexcept

Bind a mutable raw-pointer view for a hot loop.

The span must not outlive the next reserve on the pool; see PODSpan.

Parameters

[in]

a_base

Current base address of the pool holding this array.

Returns

A PODSpan over the array.

data() [1/2]

template<class T >

const T * EBGeometry::PODVector< T >::data ( const void *  a_base ) const

inlinenoexcept

Const pointer to element 0 against a_base.

Parameters

[in]

a_base

Base address of the pool holding this array.

Returns

Const pointer to element 0.

data() [2/2]

template<class T >

T * EBGeometry::PODVector< T >::data ( void *  a_base ) const

inlinenoexcept

Mutable pointer to element 0 against a_base.

Parameters

[in]

a_base

Base address of the pool holding this array.

Returns

Pointer to element 0.

empty()

template<class T >

bool EBGeometry::PODVector< T >::empty ( ) const

inlinenoexcept

Whether the array is empty.

Returns

True if m_size == 0.

endByte()

template<class T >

uint64_t EBGeometry::PODVector< T >::endByte ( ) const

inlinenoexcept

One past the last byte this array occupies, measured from the pool base.

Deliberately computed from m_capacity rather than m_size: it bounds the reserved region, which is what a mirrored block must be large enough to contain. Used to check that an array actually fits inside a pool it is being rebased onto (see EBGeometry::DCEL::MeshT::rebasedView), which catches the realistic mistake of mirroring a pool before the last Pool::reserve.

Returns

m_offset + m_capacity * sizeof(T).

push_back()

template<class T >

void EBGeometry::PODVector< T >::push_back ( void *  a_base, const T &  a_value  )

inline

Append one element into the pre-reserved capacity.

No reallocation ever: appending past capacity is an invariant violation. A host build-phase operation.

Parameters

[in]	a_base	Base address of the pool holding this array.
[in]	a_value	Value to append.

reserveFrom()

template<class T >

void EBGeometry::PODVector< T >::reserveFrom ( Pool &  a_pool, uint32_t  a_capacity  )

inline

Reserve a_capacity slots from a_pool, aligned to alignof(T).

Sets m_offset and m_capacity and resets m_size to zero. A host build-phase operation.

Parameters

[in,out]	a_pool	Pool to reserve from (must not be frozen).
[in]	a_capacity	Number of element slots to reserve.

size()

template<class T >

uint32_t EBGeometry::PODVector< T >::size ( ) const

inlinenoexcept

Number of constructed elements.

Returns

m_size.

---

The documentation for this struct was generated from the following file:

• Source/EBGeometry_PODVector.hpp
