An expression node. More...

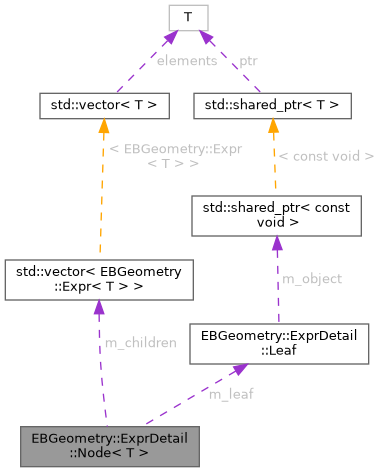

Collaboration diagram for EBGeometry::ExprDetail::Node< T >:

[legend]

Public Attributes
Kind	m_kind = Kind::Primitive
	What the node does.

std::vector< Expr< T > >	m_children
	Children (none for a primitive, one for a map or value operation, any number for a union or intersection).

Leaf	m_leaf
	The shape, for a primitive.

Affine3T< T >	m_map = Affine3T<T>::identity()
	Point map applied before the child is evaluated (Affine).

Affine3T< T >	m_inverse = Affine3T<T>::identity()
	Inverse of m_map, which maps the child's box to the node's (Affine).

T	m_valueScale = T(1)
	Value multiplier applied after the child is evaluated (Affine): \|s\| for a scaling by s.

Vec3T< T >	m_vec0 = Vec3T<T>::zeros()
	Elongation half-lengths (Elongate) or tile period (Repeat).

Vec3T< T >	m_vec1 = Vec3T<T>::zeros()
	Tiles in the decreasing direction of each axis, rounded to whole numbers (Repeat).

Vec3T< T >	m_vec2 = Vec3T<T>::zeros()
	Tiles in the increasing direction of each axis, rounded to whole numbers (Repeat).

T	m_scalar0 = T(0)
	Offset distance (Offset), shell half-thickness (Annular), blur distance (Blur), mollification distance (Mollify) or smoothing length (smooth operations).

T	m_scalar1 = T(0)
	Blend weight alpha (Blur).

uint32_t	m_count = 0
	Samples per axis (Mollify).

BlendKind	m_blend = BlendKind::Polynomial
	Blend kind (smooth operations).

BoundingVolumes::AABBT< T >	m_boundingVolume
	A box enclosing the node's object.

DistanceQuality	m_quality = DistanceQuality::Exact
	How far the node's value can be trusted as a distance.

Detailed Description

template<class T>
struct EBGeometry::ExprDetail::Node< T >

An expression node.

Internal helper; not part of the public API. Each node's bounding volume and distance quality are computed when it is made, from its children's.

Template Parameters

T	Floating-point precision.

The documentation for this struct was generated from the following file:
