Octree class without anything special (this uses full tree representation rather than linear/pointerless). More...

#include <EBGeometry_Octree.hpp>

Inheritance diagram for EBGeometry::Octree::Node< Meta, Data >:

[legend]

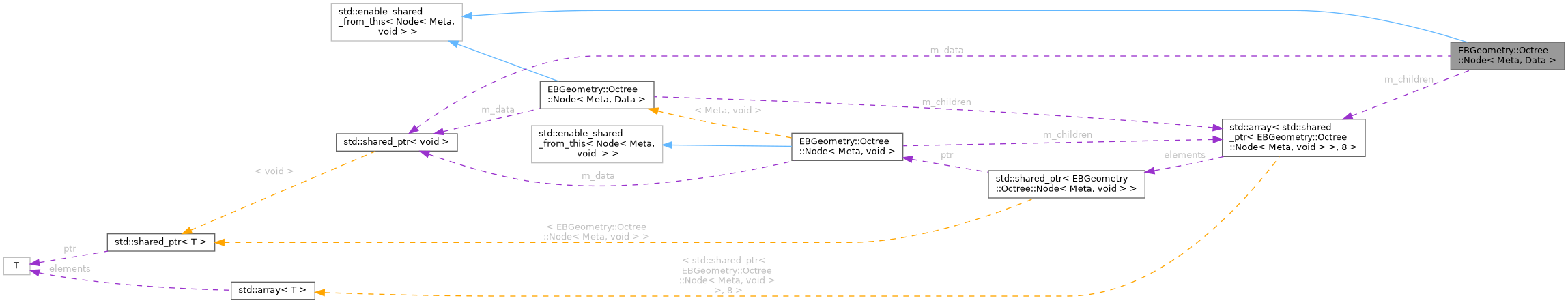

Collaboration diagram for EBGeometry::Octree::Node< Meta, Data >:

[legend]

Public Types
using	SplitFunction = std::function< bool(const Node< Meta, Data > &a_node)>
	Predicate for deciding whether a leaf node should be subdivided further.

using	MetaConstructor = std::function< Meta(const OctantIndex &a_index, const Meta &a_parentMeta)>
	For assigning meta-data to the child octs during the build process.

using	DataConstructor = std::function< std::shared_ptr< Data >(const OctantIndex &a_index, const std::shared_ptr< Data > &a_parentData)>
	For assigning data to child octs during the build process.

using	LeafEvaluator = std::function< void(const Node< Meta, Data > &a_node)>
	LeafEvaluator pattern for Node::traverse. This is called when visiting a leaf node.

using	PrunePredicate = std::function< bool(const Node< Meta, Data > &a_node)>
	PrunePredicate pattern for Node::traverse. This is called on interior and leaf nodes. Must return true if we should query the node and false otherwise.

using	ChildOrderer = std::function< void(std::array< std::shared_ptr< const Node< Meta, Data > >, 8 > &a_children)>
	ChildOrderer for traverse pattern. This is called on interior nodes for deciding which sub-tree to visit first.

Public Member Functions
	Node ()=default
	Default constructor. All children default-null (leaf node); m_meta and m_data are default-constructed.

	Node (const Node &a_other)=default
	Copy constructor.

	Node (Node &&a_other)=default
	Move constructor.

	~Node ()=default
	Destructor.

Node &	operator= (const Node &a_other)=default
	Copy assignment.

Node &	operator= (Node &&a_other)=default
	Move assignment.

const std::array< std::shared_ptr< Node< Meta, Data > >, 8 > &	getChildren () const noexcept
	Get children.

std::array< std::shared_ptr< Node< Meta, Data > >, 8 > &	getChildren () noexcept
	Get children.

Meta &	getMetaData () noexcept
	Get node meta-data.

const Meta &	getMetaData () const noexcept
	Get node meta-data.

std::shared_ptr< Data > &	getData () noexcept
	Get node data.

const std::shared_ptr< Data > &	getData () const noexcept
	Get node data.

bool	isLeaf () const noexcept
	Check if this is a leaf node.

void	buildDepthFirst (const SplitFunction &a_splitFunction, const MetaConstructor &a_metaConstructor, const DataConstructor &a_dataConstructor) noexcept
	Build the octree in depth-first order.

void	buildBreadthFirst (const SplitFunction &a_splitFunction, const MetaConstructor &a_metaConstructor, const DataConstructor &a_dataConstructor) noexcept
	Build the octree in breadth-first order.

void	traverse (const LeafEvaluator &a_leafEvaluator, const PrunePredicate &a_prunePredicate, const ChildOrderer &a_childOrderer=[](std::array< std::shared_ptr< const Node< Meta, Data > >, 8 > &) -> void { return;}) const noexcept
	Traverse the tree.

Protected Attributes
Meta	m_meta
	Meta-data for the node. This is typically the lower-left and upper-right corners of the node, but it's the users' responsibility to fill this with the meta-information they need for the tree.

std::shared_ptr< Data >	m_data
	Node contents.

std::array< std::shared_ptr< Node< Meta, Data > >, 8 >	m_children
	Node children.

Detailed Description

template<typename Meta, typename Data = void>
class EBGeometry::Octree::Node< Meta, Data >

Octree class without anything special (this uses full tree representation rather than linear/pointerless).

Meta is the meta-data for the node (user can put in e.g. level, volume, etc) and Data is the leaf node contents.

Note: This class should only be used with smart pointers. I.e. std::shared_ptr<Node> rather than Node.

Template Parameters

Meta	Meta-data type stored in every node (e.g. an AABB or level index).
Data	Payload type stored at leaf nodes.

Member Typedef Documentation

◆ ChildOrderer

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::ChildOrderer = std::function<void(std::array<std::shared_ptr<const Node<Meta, Data> >, 8>& a_children)>

ChildOrderer for traverse pattern. This is called on interior nodes for deciding which sub-tree to visit first.

Parameters

[in,out] a_children Sortable children nodes, first node is visited first, then the second, etc.

◆ DataConstructor

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::DataConstructor = std::function<std::shared_ptr<Data>(const OctantIndex& a_index, const std::shared_ptr<Data>& a_parentData)>

For assigning data to child octs during the build process.

Parameters

[in]	a_index	Octant index
[in]	a_parentData	Parent data.

◆ LeafEvaluator

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::LeafEvaluator = std::function<void(const Node<Meta, Data>& a_node)>

LeafEvaluator pattern for Node::traverse. This is called when visiting a leaf node.

Parameters

[in] a_node Leaf node that is visited.

◆ MetaConstructor

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::MetaConstructor = std::function<Meta(const OctantIndex& a_index, const Meta& a_parentMeta)>

For assigning meta-data to the child octs during the build process.

Parameters

[in]	a_index	Octant index
[in]	a_parentMeta	Parent meta data

◆ PrunePredicate

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::PrunePredicate = std::function<bool(const Node<Meta, Data>& a_node)>

PrunePredicate pattern for Node::traverse. This is called on interior and leaf nodes. Must return true if we should query the node and false otherwise.

Parameters

[in] a_node Node to visit or not.

◆ SplitFunction

template<typename Meta , typename Data = void>

using EBGeometry::Octree::Node< Meta, Data >::SplitFunction = std::function<bool(const Node<Meta, Data>& a_node)>

Predicate for deciding whether a leaf node should be subdivided further.

Called on each leaf node during tree construction. Returns true if the node should be split into eight children, false if it should remain a leaf.

Parameters

[in] a_node Leaf node under consideration.

Constructor & Destructor Documentation

◆ Node() [1/2]

template<typename Meta , typename Data = void>

EBGeometry::Octree::Node< Meta, Data >::Node ( const Node< Meta, Data > & a_other )

default

Copy constructor.

Shallow copy: the copy shares ownership of a_other's children and data (standard std::shared_ptr semantics) rather than deep-cloning the subtree.

Parameters

[in] a_other Other node.

◆ Node() [2/2]

template<typename Meta , typename Data = void>

EBGeometry::Octree::Node< Meta, Data >::Node ( Node< Meta, Data > && a_other )

default

Move constructor.

Parameters

[in,out] a_other Other node.

Member Function Documentation

◆ buildBreadthFirst()

template<typename Meta , typename Data = void>

void EBGeometry::Octree::Node< Meta, Data >::buildBreadthFirst	(	const SplitFunction &	a_splitFunction,
		const MetaConstructor &	a_metaConstructor,
		const DataConstructor &	a_dataConstructor
	)

inlinenoexcept

Build the octree in breadth-first order.

Must be called on a leaf node; calling it on an interior node is a no-op (with a diagnostic printed to stderr). All three callables must be non-empty (callable). Since this uses shared_from_this() internally, the node must already be owned by a std::shared_ptr (see the class-level

Note: ).

Parameters

[in]	a_splitFunction	Predicate returning `true` if a leaf node should be split further.
[in]	a_metaConstructor	Constructor for node meta-data.
[in]	a_dataConstructor	Constructor for node data.

◆ buildDepthFirst()

template<typename Meta , typename Data = void>

void EBGeometry::Octree::Node< Meta, Data >::buildDepthFirst	(	const SplitFunction &	a_splitFunction,
		const MetaConstructor &	a_metaConstructor,
		const DataConstructor &	a_dataConstructor
	)

inlinenoexcept

Build the octree in depth-first order.

Must be called on a leaf node; calling it on an interior node is a no-op (with a diagnostic printed to stderr). All three callables must be non-empty (callable).

Parameters

[in]	a_splitFunction	Predicate returning `true` if a leaf node should be split further.
[in]	a_metaConstructor	Constructor for node meta-data.
[in]	a_dataConstructor	Constructor for node data.

◆ getChildren() [1/2]

template<typename Meta , typename Data = void>

const std::array< std::shared_ptr< Node< Meta, Data > >, 8 > & EBGeometry::Octree::Node< Meta, Data >::getChildren ( ) const

inlinenoexcept

Get children.

Returns: m_children

◆ getChildren() [2/2]

template<typename Meta , typename Data = void>

std::array< std::shared_ptr< Node< Meta, Data > >, 8 > & EBGeometry::Octree::Node< Meta, Data >::getChildren ( )

inlinenoexcept

Get children.

Returns: m_children

◆ getData() [1/2]

template<typename Meta , typename Data = void>

const std::shared_ptr< Data > & EBGeometry::Octree::Node< Meta, Data >::getData ( ) const

inlinenoexcept

Get node data.

Returns: m_data

◆ getData() [2/2]

template<typename Meta , typename Data = void>

std::shared_ptr< Data > & EBGeometry::Octree::Node< Meta, Data >::getData ( )

inlinenoexcept

Get node data.

Returns: m_data

◆ getMetaData() [1/2]

template<typename Meta , typename Data = void>

const Meta & EBGeometry::Octree::Node< Meta, Data >::getMetaData ( ) const

inlinenoexcept

Get node meta-data.

Returns: m_meta

◆ getMetaData() [2/2]

template<typename Meta , typename Data = void>

Meta & EBGeometry::Octree::Node< Meta, Data >::getMetaData ( )

inlinenoexcept

Get node meta-data.

Returns: m_meta

◆ isLeaf()

template<typename Meta , typename Data = void>

bool EBGeometry::Octree::Node< Meta, Data >::isLeaf ( ) const

inlinenoexcept

Check if this is a leaf node.

Returns: True if this node has no children (i.e., it is a leaf).

◆ operator=() [1/2]

template<typename Meta , typename Data = void>

Node & EBGeometry::Octree::Node< Meta, Data >::operator= ( const Node< Meta, Data > & a_other )

default

Copy assignment.

See the copy constructor for the shallow-copy semantics.

Parameters

[in] a_other Other node.

Returns: Reference to (*this).

◆ operator=() [2/2]

template<typename Meta , typename Data = void>

Node & EBGeometry::Octree::Node< Meta, Data >::operator= ( Node< Meta, Data > && a_other )

default

Move assignment.

Parameters

[in,out] a_other Other node.

Returns: Reference to (*this).

◆ traverse()

template<typename Meta , typename Data = void>

void EBGeometry::Octree::Node< Meta, Data >::traverse	(	const LeafEvaluator &	a_leafEvaluator,
		const PrunePredicate &	a_prunePredicate,
		const ChildOrderer &	a_childOrderer = `[](std::array< std::shared_ptr< const Node< Meta, Data > >, 8 > &) -> void { return;}`
	)		const

inlinenoexcept

Traverse the tree.

Since this uses shared_from_this() internally, the node must already be owned by a std::shared_ptr (see the class-level

Note: ). a_leafEvaluator and a_prunePredicate must be non-empty (callable); a_childOrderer, if explicitly supplied, must be non-empty too.

Parameters

[in]	a_leafEvaluator	LeafEvaluator when visiting leaf nodes.
[in]	a_prunePredicate	PrunePredicate for deciding to visit a node.
[in]	a_childOrderer	ChildOrderer method for deciding which subtree to investigate first.

The documentation for this class was generated from the following file:

Source/EBGeometry_Octree.hpp
