EBGeometry::FiniteRepetitionIF< T > Class Template Reference

Implicit function that tiles a base function periodically within a finite repetition count. More...

#include <EBGeometry_CSG.hpp>

Inheritance diagram for EBGeometry::FiniteRepetitionIF< T >:

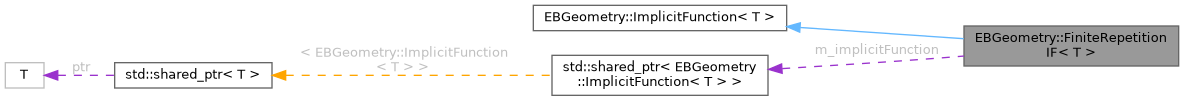

Collaboration diagram for EBGeometry::FiniteRepetitionIF< T >:

Public Member Functions
	FiniteRepetitionIF ()=delete
	Disallowed, use the full constructor.
	FiniteRepetitionIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunction, const Vec3T< T > &a_period, const Vec3T< T > &a_repeatLo, const Vec3T< T > &a_repeatHi) noexcept
	Constructs the periodically tiled implicit function.
	~FiniteRepetitionIF () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept override
	Evaluates the signed distance at a_point by folding into the nearest tile.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Attributes
Vec3T< T >	m_period
	Tile period in each coordinate direction.
Vec3T< T >	m_repeatHi
	Repetition count for increasing coordinate directions.
Vec3T< T >	m_repeatLo
	Repetition count for decreasing coordinate directions.
std::shared_ptr< ImplicitFunction< T > >	m_implicitFunction
	Base implicit function to tile.

Detailed Description

template<class T>
class EBGeometry::FiniteRepetitionIF< T >

Implicit function that tiles a base function periodically within a finite repetition count.

The query point is folded into the nearest tile before evaluating the base function. Outside the repetition range, the nearest boundary tile is evaluated.

Template Parameters

T	Floating-point precision.

Constructor & Destructor Documentation

FiniteRepetitionIF()

template<class T >

EBGeometry::FiniteRepetitionIF< T >::FiniteRepetitionIF ( const std::shared_ptr< ImplicitFunction< T > > &  a_implicitFunction, const Vec3T< T > &  a_period, const Vec3T< T > &  a_repeatLo, const Vec3T< T > &  a_repeatHi  )

noexcept

Constructs the periodically tiled implicit function.

Parameters

[in]	a_implicitFunction	Base function to tile (must not be null).
[in]	a_period	Tile period per coordinate direction (all components must be > 0).
[in]	a_repeatLo	Repetition count for decreasing coordinates (integer values).
[in]	a_repeatHi	Repetition count for increasing coordinates (integer values).

Member Function Documentation

value()

template<class T >

T EBGeometry::FiniteRepetitionIF< T >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Evaluates the signed distance at a_point by folding into the nearest tile.

Parameters

[in]

a_point

3D query point.

Returns

Signed distance from the folded point to the base implicit function.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_CSG.hpp
