EBGeometry::DifferenceIF< T > Class Template Reference

Implicit function whose interior is the set difference A \ B. More...

#include <EBGeometry_CSG.hpp>

Inheritance diagram for EBGeometry::DifferenceIF< T >:

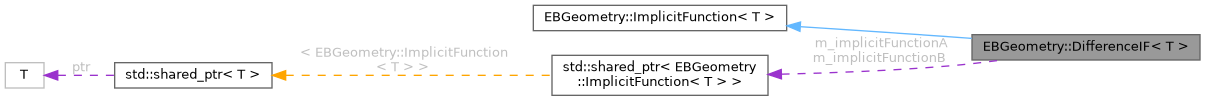

Collaboration diagram for EBGeometry::DifferenceIF< T >:

Public Member Functions
	DifferenceIF ()=delete
	Disallowed, use the full constructor.
	DifferenceIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionA, const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionB) noexcept
	Constructs A \ B from two implicit functions.
	DifferenceIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunctionA, const std::vector< std::shared_ptr< ImplicitFunction< T > > > &a_implicitFunctionsB) noexcept
	Constructs A \ union(Bs) from A and a list of subtrahends.
	~DifferenceIF () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept override
	Evaluates the signed distance at a_point.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Attributes
std::shared_ptr< ImplicitFunction< T > >	m_implicitFunctionA
	Minuend implicit function.
std::shared_ptr< ImplicitFunction< T > >	m_implicitFunctionB
	Subtrahend implicit function (may wrap a union of multiple subtrahends).

Detailed Description

template<class T>
class EBGeometry::DifferenceIF< T >

Implicit function whose interior is the set difference A \ B.

A point is inside DifferenceIF if and only if it is inside A and outside B. The value function returns max(A(x), -B(x)).

Template Parameters

T	Floating-point precision.

Constructor & Destructor Documentation

DifferenceIF() [1/2]

template<class T >

EBGeometry::DifferenceIF< T >::DifferenceIF ( const std::shared_ptr< ImplicitFunction< T > > &  a_implicitFunctionA, const std::shared_ptr< ImplicitFunction< T > > &  a_implicitFunctionB  )

noexcept

Constructs A \ B from two implicit functions.

Parameters

[in]	a_implicitFunctionA	Minuend (must not be null).
[in]	a_implicitFunctionB	Subtrahend (must not be null).

DifferenceIF() [2/2]

template<class T >

EBGeometry::DifferenceIF< T >::DifferenceIF ( const std::shared_ptr< ImplicitFunction< T > > &  a_implicitFunctionA, const std::vector< std::shared_ptr< ImplicitFunction< T > > > &  a_implicitFunctionsB  )

noexcept

Constructs A \ union(Bs) from A and a list of subtrahends.

Parameters

[in]	a_implicitFunctionA	Minuend (must not be null).
[in]	a_implicitFunctionsB	Subtrahends (must be non-empty; no null entries).

Member Function Documentation

value()

template<class T >

T EBGeometry::DifferenceIF< T >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Evaluates the signed distance at a_point.

Returns max(A(x), -B(x)). Negative when inside A and outside B.

Parameters

[in]

a_point

3D query point.

Returns

Signed distance representing A \ B.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_CSG.hpp
