EBGeometry::BlurIF< T > Class Template Reference

Blurred/interpolated implicit function — can be used for smoothing. More...

#include <EBGeometry_Transform.hpp>

Inheritance diagram for EBGeometry::BlurIF< T >:

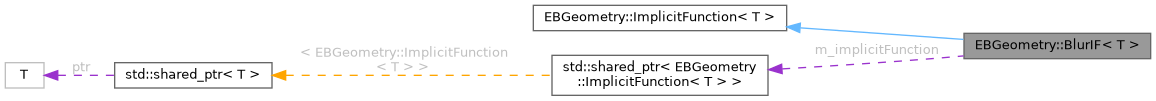

Collaboration diagram for EBGeometry::BlurIF< T >:

Public Member Functions
	BlurIF ()=delete
	Disallowed weak construction.
	BlurIF (const BlurIF &a_other) noexcept=default
	Copy constructor.
	BlurIF (BlurIF &&a_other) noexcept=default
	Move constructor.
	BlurIF (const std::shared_ptr< ImplicitFunction< T > > &a_implicitFunction, const T a_blurDistance, const T a_alpha=0.5) noexcept
	Full constructor.
	~BlurIF () override=default
	Destructor.
BlurIF &	operator= (const BlurIF &a_other) noexcept=default
	Copy assignment operator.
BlurIF &	operator= (BlurIF &&a_other) noexcept=default
	Move assignment operator.
T	value (const Vec3T< T > &a_point) const noexcept override
	Value function.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Attributes
std::shared_ptr< ImplicitFunction< T > >	m_implicitFunction = nullptr
	Original implicit function.
T	m_blurDistance
	Blur distance.
T	m_alpha
	Alpha factor.

Detailed Description

template<class T>
class EBGeometry::BlurIF< T >

Blurred/interpolated implicit function — can be used for smoothing.

Passes the input implicit function through a 3D box filter sampled at face centres, edge centres, and corners of a cube with half-side m_blurDistance. The per-sample weights are products of alpha^(3-n) * ((1-alpha)/2)^n where n is the number of displaced axes.

Template Parameters

T	Floating-point precision

Constructor & Destructor Documentation

BlurIF() [1/3]

template<class T >

EBGeometry::BlurIF< T >::BlurIF ( const BlurIF< T > &  a_other )

defaultnoexcept

Copy constructor.

Parameters

[in]

a_other

Other BlurIF.

BlurIF() [2/3]

template<class T >

EBGeometry::BlurIF< T >::BlurIF ( BlurIF< T > &&  a_other )

defaultnoexcept

Move constructor.

Parameters

[in,out]

a_other

Other BlurIF.

BlurIF() [3/3]

template<class T >

EBGeometry::BlurIF< T >::BlurIF ( const std::shared_ptr< ImplicitFunction< T > > &  a_implicitFunction, const T  a_blurDistance, const T  a_alpha = 0.5  )

noexcept

Full constructor.

Parameters

[in]	a_implicitFunction	Input implicit function
[in]	a_blurDistance	Blur distance
[in]	a_alpha	Blend factor in [0, 1]; 1 = no blur, 0 = full blur.

Member Function Documentation

operator=() [1/2]

template<class T >

BlurIF & EBGeometry::BlurIF< T >::operator= ( BlurIF< T > &&  a_other )

defaultnoexcept

Move assignment operator.

Parameters

[in,out]

a_other

Other BlurIF.

Returns

Reference to (*this).

operator=() [2/2]

template<class T >

BlurIF & EBGeometry::BlurIF< T >::operator= ( const BlurIF< T > &  a_other )

defaultnoexcept

Copy assignment operator.

Parameters

[in]

a_other

Other BlurIF.

Returns

Reference to (*this).

value()

template<class T >

T EBGeometry::BlurIF< T >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Value function.

Parameters

[in]

a_point

Query point

Returns

Blurred implicit function value at a_point

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_Transform.hpp
