EBGeometry::BVHUnionIF< T, P, BV, K > Class Template Reference

BVH-accelerated union of implicit functions. More...

#include <EBGeometry_CSG.hpp>

Inheritance diagram for EBGeometry::BVHUnionIF< T, P, BV, K >:

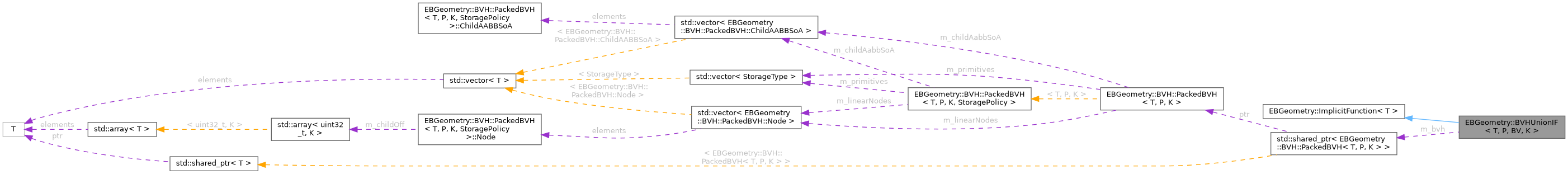

Collaboration diagram for EBGeometry::BVHUnionIF< T, P, BV, K >:

Public Types
using	Root = EBGeometry::BVH::PackedBVH< T, P, K >
	Alias for the flat BVH type.
using	Node = typename Root::Node
	Alias for a BVH node.

Public Member Functions
	BVHUnionIF ()=delete
	Disallowed, use the full constructor.
	BVHUnionIF (const std::vector< std::pair< std::shared_ptr< const P >, BV > > &a_primsAndBVs)
	Constructs the BVH-accelerated union from pre-paired primitives and bounding volumes.
	BVHUnionIF (const std::vector< std::shared_ptr< P > > &a_primitives, const std::vector< BV > &a_boundingVolumes)
	Constructs the BVH-accelerated union from separate primitive and bounding-volume lists.
	~BVHUnionIF () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept override
	Evaluates the signed distance at a_point using BVH traversal.
const EBGeometry::BoundingVolumes::AABBT< T > &	getBoundingVolume () const noexcept
	Returns the axis-aligned bounding box enclosing all primitives.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Member Functions
void	buildTree (const std::vector< std::pair< std::shared_ptr< const P >, BV > > &a_primsAndBVs, const BVH::Build a_build=BVH::Build::SAH) noexcept
	Builds the internal BVH from primitive/BV pairs.

Protected Attributes
std::shared_ptr< EBGeometry::BVH::PackedBVH< T, P, K > >	m_bvh
	Flat BVH over all input primitives.

Detailed Description

template<class T, class P, class BV, size_t K>
class EBGeometry::BVHUnionIF< T, P, BV, K >

BVH-accelerated union of implicit functions.

Wraps a PackedBVH over the input primitives. At query time the BVH culls primitives whose bounding volume lies further than the current best distance, giving sub-linear cost on large scenes. Interior semantics are identical to UnionIF.

Template Parameters

T	Floating-point precision.
P	Primitive type; must derive from ImplicitFunction<T>.
BV	Bounding volume type (e.g. AABBT<T>).
K	BVH branching factor.

Constructor & Destructor Documentation

BVHUnionIF() [1/2]

template<class T , class P , class BV , size_t K>

EBGeometry::BVHUnionIF< T, P, BV, K >::BVHUnionIF

(

const std::vector< std::pair< std::shared_ptr< const P >, BV > > &

a_primsAndBVs

)

Constructs the BVH-accelerated union from pre-paired primitives and bounding volumes.

Parameters

[in]

a_primsAndBVs

Primitives and their bounding volumes (must be non-empty; no null primitives).

BVHUnionIF() [2/2]

template<class T , class P , class BV , size_t K>

EBGeometry::BVHUnionIF< T, P, BV, K >::BVHUnionIF	(	const std::vector< std::shared_ptr< P > > &	a_primitives,
		const std::vector< BV > &	a_boundingVolumes
	)

Constructs the BVH-accelerated union from separate primitive and bounding-volume lists.

Parameters

[in]	a_primitives	Input primitives (must be non-empty; same length as a_boundingVolumes; no nulls).
[in]	a_boundingVolumes	Bounding volumes for each primitive.

Member Function Documentation

buildTree()

template<class T , class P , class BV , size_t K>

void EBGeometry::BVHUnionIF< T, P, BV, K >::buildTree ( const std::vector< std::pair< std::shared_ptr< const P >, BV > > &  a_primsAndBVs, const BVH::Build  a_build = BVH::Build::SAH  )

inlineprotectednoexcept

Builds the internal BVH from primitive/BV pairs.

Parameters

[in]	a_primsAndBVs	Primitives and their bounding volumes.
[in]	a_build	BVH construction strategy.

getBoundingVolume()

template<class T , class P , class BV , size_t K>

const EBGeometry::BoundingVolumes::AABBT< T > & EBGeometry::BVHUnionIF< T, P, BV, K >::getBoundingVolume ( ) const

noexcept

Returns the axis-aligned bounding box enclosing all primitives.

Returns

Const reference to the root bounding volume of the BVH.

value()

template<class T , class P , class BV , size_t K>

T EBGeometry::BVHUnionIF< T, P, BV, K >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Evaluates the signed distance at a_point using BVH traversal.

Returns the minimum value over all primitives not pruned by the BVH. Negative when inside the union.

Parameters

[in]

a_point

3D query point.

Returns

Minimum signed distance among all non-culled primitives.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_CSG.hpp
