EBGeometry::BVHSmoothUnionIF< T, P, BV, K > Class Template Reference

BVH-accelerated smooth union of implicit functions. More...

#include <EBGeometry_CSG.hpp>

Inheritance diagram for EBGeometry::BVHSmoothUnionIF< T, P, BV, K >:

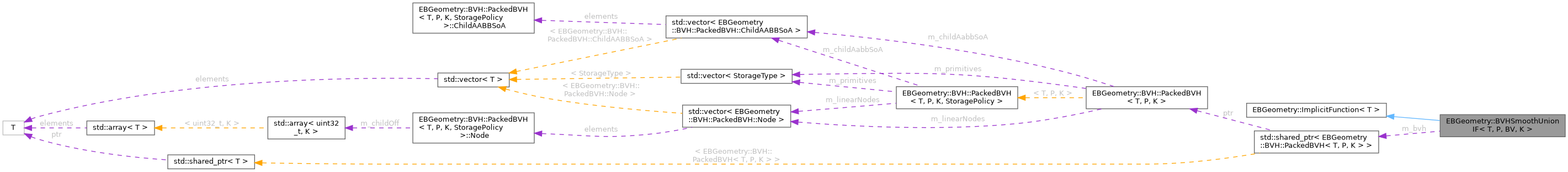

Collaboration diagram for EBGeometry::BVHSmoothUnionIF< T, P, BV, K >:

Public Types
using	Root = EBGeometry::BVH::PackedBVH< T, P, K >
	Alias for the flat BVH type.
using	Node = typename Root::Node
	Alias for a BVH node.

Public Member Functions
	BVHSmoothUnionIF ()=delete
	Disallowed, use the full constructor.
	BVHSmoothUnionIF (const std::vector< std::shared_ptr< P > > &a_distanceFunctions, const std::vector< BV > &a_boundingVolumes, const T a_smoothLen, const std::function< T(const T &, const T &, const T &)> a_smoothMin=SmoothMin< T >) noexcept
	Constructs the BVH-accelerated smooth union.
	~BVHSmoothUnionIF () override=default
	Destructor.
T	value (const Vec3T< T > &a_point) const noexcept override
	Evaluates the smoothly blended signed distance at a_point using BVH traversal.
const EBGeometry::BoundingVolumes::AABBT< T > &	getBoundingVolume () const noexcept
	Returns the axis-aligned bounding box enclosing all primitives.
Public Member Functions inherited from EBGeometry::ImplicitFunction< T >
	ImplicitFunction ()=default
	Default constructor.
virtual	~ImplicitFunction ()=default
	Default destructor.
T	operator() (const Vec3T< T > &a_point) const noexcept
	Call operator — alternative signature for the value function.
template<class BV >
BV	approximateBoundingVolumeOctree (const Vec3T< T > &a_initialLowCorner, const Vec3T< T > &a_initialHighCorner, const unsigned int a_maxTreeDepth, const T &a_safety=0.0) const
	Compute an approximation to the bounding volume for the implicit surface using octree subdivision.

Protected Member Functions
void	buildTree (const std::vector< std::pair< std::shared_ptr< const P >, BV > > &a_primsAndBVs, const BVH::Build a_build=BVH::Build::SAH) noexcept
	Builds the internal BVH from primitive/BV pairs.

Protected Attributes
std::shared_ptr< EBGeometry::BVH::PackedBVH< T, P, K > >	m_bvh
	Flat BVH over all input primitives.
T	m_smoothLen
	Smoothing length.
std::function< T(const T &, const T &, const T &)>	m_smoothMin
	Smooth-minimum operator.

Detailed Description

template<class T, class P, class BV, size_t K>
class EBGeometry::BVHSmoothUnionIF< T, P, BV, K >

BVH-accelerated smooth union of implicit functions.

Uses the BVH to locate the two nearest primitives and applies a smooth-minimum operator to their values, yielding C1 (or better) blending across nearby surfaces. Query cost is sub-linear in the number of primitives.

Template Parameters

T	Floating-point precision.
P	Primitive type; must derive from ImplicitFunction<T>.
BV	Bounding volume type (e.g. AABBT<T>).
K	BVH branching factor.

Constructor & Destructor Documentation

BVHSmoothUnionIF()

template<class T , class P , class BV , size_t K>

EBGeometry::BVHSmoothUnionIF< T, P, BV, K >::BVHSmoothUnionIF ( const std::vector< std::shared_ptr< P > > &  a_distanceFunctions, const std::vector< BV > &  a_boundingVolumes, const T  a_smoothLen, const std::function< T(const T &, const T &, const T &)>  a_smoothMin = SmoothMin< T >  )

noexcept

Constructs the BVH-accelerated smooth union.

Parameters

[in]	a_distanceFunctions	Input implicit functions (must be non-empty; no null entries).
[in]	a_boundingVolumes	Bounding volumes for each function (same length as a_distanceFunctions).
[in]	a_smoothLen	Smoothing length (must be > 0).
[in]	a_smoothMin	Smooth-minimum operator; defaults to SmoothMin<T>.

Member Function Documentation

buildTree()

template<class T , class P , class BV , size_t K>

void EBGeometry::BVHSmoothUnionIF< T, P, BV, K >::buildTree ( const std::vector< std::pair< std::shared_ptr< const P >, BV > > &  a_primsAndBVs, const BVH::Build  a_build = BVH::Build::SAH  )

inlineprotectednoexcept

Builds the internal BVH from primitive/BV pairs.

Parameters

[in]	a_primsAndBVs	Primitives and their bounding volumes.
[in]	a_build	BVH construction strategy.

getBoundingVolume()

template<class T , class P , class BV , size_t K>

const EBGeometry::BoundingVolumes::AABBT< T > & EBGeometry::BVHSmoothUnionIF< T, P, BV, K >::getBoundingVolume ( ) const

noexcept

Returns the axis-aligned bounding box enclosing all primitives.

Returns

Const reference to the root bounding volume of the BVH.

value()

template<class T , class P , class BV , size_t K>

T EBGeometry::BVHSmoothUnionIF< T, P, BV, K >::value ( const Vec3T< T > &  a_point ) const

overridevirtualnoexcept

Evaluates the smoothly blended signed distance at a_point using BVH traversal.

Finds the two nearest primitives via BVH and applies the stored smooth-minimum. Negative when inside the smooth union.

Parameters

[in]

a_point

3D query point.

Returns

Smooth minimum signed distance blended from the two closest primitives.

Implements EBGeometry::ImplicitFunction< T >.

---

The documentation for this class was generated from the following file:

• Source/EBGeometry_CSG.hpp
