Fused CSG: the operations of the expression builder (EBGeometry_Expr.hpp) as types, which the compiler evaluates fully inlined, on the host and on a device. More...
#include <cstddef>#include <cstdint>#include <type_traits>#include <utility>#include "EBGeometry_Affine.hpp"#include "EBGeometry_BVHUnion.hpp"#include "EBGeometry_BoundingVolumes.hpp"#include "EBGeometry_CSGOps.hpp"#include "EBGeometry_DistanceQuality.hpp"#include "EBGeometry_Expr.hpp"#include "EBGeometry_GPU.hpp"#include "EBGeometry_Macros.hpp"#include "EBGeometry_Pool.hpp"#include "EBGeometry_Vec.hpp"#include "EBGeometry_FusedImplem.hpp"#include "EBGeometry_CSGRayForms.hpp"
Include dependency graph for EBGeometry_Fused.hpp:

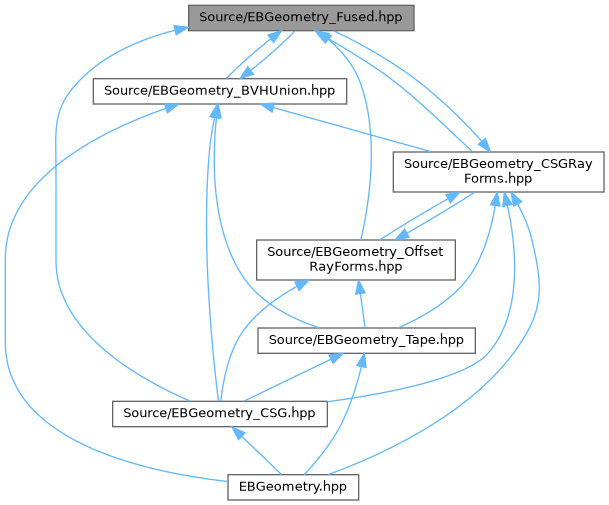

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | EBGeometry::Fused::Detail::Pack<> |
| The empty pack. More... | |
| struct | EBGeometry::Fused::Detail::Pack< S, Rest... > |
| A pack: its first operand and the rest. More... | |
| struct | EBGeometry::Fused::Detail::TypeAt< 0, C, Rest... > |
| Type 0: the first. More... | |
| struct | EBGeometry::Fused::Detail::TypeAt< I, C, Rest... > |
| Type I > 0: type I - 1 of the rest. More... | |
| struct | EBGeometry::Fused::Detail::Base< Handle > |
| A value node's base: no pool, and an unset location for the code that asks for one. More... | |
| struct | EBGeometry::Fused::Detail::Base< true > |
| A pool-resident node's base: a PoolHandle, holding the location its operands resolve against. More... | |
| struct | EBGeometry::Fused::Detail::Operands< Cs > |
| The operands of a node, with the location their pool-resident ones resolve against. More... | |
| class | EBGeometry::Fused::Node< Op, Cs > |
| A fused composition: an operation applied to its operands, itself a shape (isShape). More... | |
| struct | EBGeometry::Fused::Node< Op, Cs >::Layout |
| Everything the node holds: the operation's parameters and its operands (their layouts for pool-resident ones). It holds only offsets into a pool, so it is right in every mirror of the pool. More... | |
| struct | EBGeometry::Fused::CombineOp< IsUnion > |
| Union or intersection: the minimum or the maximum of the operands' values, in order. More... | |
| struct | EBGeometry::Fused::SmoothCombineOp< T, IsUnion > |
| Smooth union or intersection: a smooth minimum (maximum) of the two smallest (largest) values. More... | |
| struct | EBGeometry::Fused::ComplementOp |
| Complement: -v, inside and outside swapped. More... | |
| struct | EBGeometry::Fused::AffineOp< T > |
| An affine map (translation, rotation, scaling, reflection, or a composition of them): the operand's value at the mapped point, times a value scale. More... | |
| struct | EBGeometry::Fused::ElongateOp< T > |
| Elongation: the operand's value at p - clamp(p, -h, h). More... | |
| struct | EBGeometry::Fused::ShiftOp< T, IsAnnulus > |
| Offset (v - r) or annulus (|v| - delta). More... | |
| struct | EBGeometry::Fused::RepetitionOp< T > |
| Finite repetition: the minimum of the operand's value over all its copies (CSGOps::repetition()). More... | |
| struct | EBGeometry::Fused::BlurOp< T > |
| Blur: a weighted average of the operand's values at 27 points (CSGOps::blur()). More... | |
| struct | EBGeometry::Fused::MollifyOp< T > |
| Mollification: the operand convolved with a bump kernel sampled on a grid (CSGOps::mollify()). More... | |
| struct | EBGeometry::Fused::OperandList< Cs > |
| A list of operands, for the n-ary smooth operations (whose smoothing parameters follow the operands): Fused::SmoothUnion(Fused::operands(a, b, c), s). More... | |
Namespaces | |
| namespace | EBGeometry |
| Namespace containing all of EBGeometry's functionality. | |
| namespace | EBGeometry::Fused |
| Fused CSG: the expression builder's operations as types (see EBGeometry_Fused.hpp). | |
| namespace | EBGeometry::Fused::Detail |
| Implementation details of the fused operations. | |
Typedefs | |
| using | EBGeometry::Fused::UnionOp = CombineOp< true > |
| A union: the minimum of the operands' values. | |
| using | EBGeometry::Fused::IntersectionOp = CombineOp< false > |
| An intersection: the maximum of the operands' values. | |
| template<class Op , class... Cs> | |
| using | EBGeometry::Fused::NodeOf = Node< Op, Cs... > |
| The shape type a Fused:: function returns for an operation and its operands. | |
Functions | |
| template<size_t I, class S , class... Rest> | |
| const auto & | EBGeometry::Fused::Detail::get (const Pack< S, Rest... > &a_pack) noexcept |
| Operand I of a pack. | |
| template<size_t I, class S , class... Rest> | |
| auto & | EBGeometry::Fused::Detail::get (Pack< S, Rest... > &a_pack) noexcept |
| Operand I of a pack, for writing. | |
| template<class... Cs> | |
| constexpr DistanceQuality | EBGeometry::Fused::Detail::worstAndBound () noexcept |
| The worst distance quality among some operand types, and Bound (Exact < Bound < NotADistance). | |
| template<class... Cs> | |
| OperandList< Cs... > | EBGeometry::Fused::operands (const Cs &... a_operands) |
| A list of operands for an n-ary smooth operation. | |
| template<class C , class... Cs> | |
| auto | EBGeometry::Fused::Union (const C &a_first, const Cs &... a_others) |
| Union of shapes: the minimum of their values. One shape is returned as is. | |
| template<class C , class... Cs> | |
| auto | EBGeometry::Fused::Intersection (const C &a_first, const Cs &... a_others) |
| Intersection of shapes: the maximum of their values. One shape is returned as is. | |
| template<class A , class B , class... Bs> | |
| auto | EBGeometry::Fused::Difference (const A &a_first, const B &a_second, const Bs &... a_others) |
| Difference A \ (B1 u B2 u ...): max(A, -min_i Bi). | |
| template<class C > | |
| Node< ComplementOp, C > | EBGeometry::Fused::Complement (const C &a_operand) |
| Complement: inside and outside swapped, -v. | |
| template<class A , class B > | |
| Node< SmoothCombineOp< ShapePrecision< A >, true >, A, B > | EBGeometry::Fused::SmoothUnion (const A &a_first, const B &a_second, const ShapePrecision< A > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth union of two shapes: a smooth minimum of their values. | |
| template<class... Cs> | |
| auto | EBGeometry::Fused::SmoothUnion (const OperandList< Cs... > &a_operands, const ShapePrecision< typename Detail::TypeAt< 0, Cs... >::type > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth union of any number of shapes: a smooth minimum of the two smallest values (see EBGeometry::SmoothUnion()). | |
| template<class A , class B > | |
| Node< SmoothCombineOp< ShapePrecision< A >, false >, A, B > | EBGeometry::Fused::SmoothIntersection (const A &a_first, const B &a_second, const ShapePrecision< A > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth intersection of two shapes: a smooth maximum of their values. | |
| template<class... Cs> | |
| auto | EBGeometry::Fused::SmoothIntersection (const OperandList< Cs... > &a_operands, const ShapePrecision< typename Detail::TypeAt< 0, Cs... >::type > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth intersection of any number of shapes: a smooth maximum of the two largest values. | |
| template<class A , class B > | |
| auto | EBGeometry::Fused::SmoothDifference (const A &a_first, const B &a_second, const ShapePrecision< A > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth difference A \ B: the smooth intersection of A and the complement of B. | |
| template<class A , class... Bs> | |
| auto | EBGeometry::Fused::SmoothDifference (const A &a_first, const OperandList< Bs... > &a_others, const ShapePrecision< A > a_smooth, const BlendKind a_blend=BlendKind::Polynomial) |
| Smooth difference A \ (B1, B2, ...): the smooth intersection of A and the complement of each Bi. | |
| template<class C > | |
| auto | EBGeometry::Fused::Translate (const C &a_operand, const Vec3T< ShapePrecision< C > > &a_shift) |
| Translate a shape by a shift. | |
| template<class C > | |
| auto | EBGeometry::Fused::Rotate (const C &a_operand, const ShapePrecision< C > a_degrees, const size_t a_axis) |
| Rotate a shape about a coordinate axis through the origin. | |
| template<class C > | |
| auto | EBGeometry::Fused::Rotate (const C &a_operand, const ShapePrecision< C > a_degrees, const Vec3T< ShapePrecision< C > > &a_axis) |
| Rotate a shape about an arbitrary axis through the origin. | |
| template<class C > | |
| auto | EBGeometry::Fused::Scale (const C &a_operand, const ShapePrecision< C > a_factor) |
| Scale a shape uniformly about the origin: |s| times its value at p / s. | |
| template<class C > | |
| auto | EBGeometry::Fused::Reflect (const C &a_operand, const size_t a_axis) |
| Reflect a shape in a coordinate plane through the origin. | |
| template<class C > | |
| Node< ShiftOp< ShapePrecision< C >, false >, C > | EBGeometry::Fused::Offset (const C &a_operand, const ShapePrecision< C > a_offset) |
| Offset a shape's surface outward by a distance, v - r. | |
| template<class C > | |
| Node< ShiftOp< ShapePrecision< C >, true >, C > | EBGeometry::Fused::Annular (const C &a_operand, const ShapePrecision< C > a_delta) |
| A shell around a shape's surface, |v| - delta. | |
| template<class C > | |
| Node< ElongateOp< ShapePrecision< C > >, C > | EBGeometry::Fused::Elongate (const C &a_operand, const Vec3T< ShapePrecision< C > > &a_elongation) |
| Elongate a shape: stretch it by inserting a box of half-lengths h at the origin. | |
| template<class C > | |
| Node< RepetitionOp< ShapePrecision< C > >, C > | EBGeometry::Fused::FiniteRepetition (const C &a_operand, const Vec3T< ShapePrecision< C > > &a_period, const Vec3T< ShapePrecision< C > > &a_repeatLo, const Vec3T< ShapePrecision< C > > &a_repeatHi) |
| Finite repetition: copies of a shape on a grid of tiles, the minimum over all of them (see EBGeometry::FiniteRepetition()). | |
| template<class C > | |
| Node< BlurOp< ShapePrecision< C > >, C > | EBGeometry::Fused::Blur (const C &a_operand, const ShapePrecision< C > a_blur, const ShapePrecision< C > a_alpha=ShapePrecision< C >(0.5)) |
| Blur a shape: a weighted average of its values at the 27 points p + d (i, j, k), i, j, k in {-1, 0, 1} (see EBGeometry::Blur()). | |
| template<class C > | |
| Node< MollifyOp< ShapePrecision< C > >, C > | EBGeometry::Fused::Mollify (const C &a_operand, const ShapePrecision< C > a_dist, const size_t a_samples) |
| Mollify a shape: convolve it with a smooth bump kernel sampled on an n x n x n grid over [-r, r]^3 (see EBGeometry::Mollify()). | |
Variables | |
| template<class... Cs> | |
| constexpr bool | EBGeometry::Fused::Detail::anyPoolHandle = (isPoolHandle<Cs> || ...) |
| Whether any of the operand types lives in a pool. | |
Detailed Description
Fused CSG: the operations of the expression builder (EBGeometry_Expr.hpp) as types, which the compiler evaluates fully inlined, on the host and on a device.
Fused::Union(a, b), Fused::Translate(a, shift), ... compose shapes like their namesakes in namespace EBGeometry, but instead of an Expr to be compiled into a Tape they return a Fused::Node: a trivially copyable shape (isShape) whose type spells out the whole composition. Its signedDistance() is the composition's value, computed as a Tape computes it (both take each operation's arithmetic from EBGeometry_CSGOps.hpp), but with no clauses to fetch and dispatch, so it runs as fast as the same solid written out by hand. A fused shape can be used wherever a shape can: queried directly or through GPU::transform(), held in a BVHUnion, or listed as a Tape primitive.
Call the functions qualified (Fused::Union, not Union): the builder's functions of the same names take shapes too, so an unqualified call is ambiguous.
Mesh SDFs, BVH unions and tapes live in a Pool. A fused shape with one of them inside is a pool handle itself (see PoolHandle): it stores its operands' layouts and one location, offers rebasedView(), deepCopy(), layout() and a (Layout, PoolLocation) constructor, and its pool-resident operands must all live in one pool, which must outlive the fused shape and every copy of it.
