What PackedBVH::traverse() tracks through a tree: query types, the child-box rows they test, and the order the children are visited in. More...

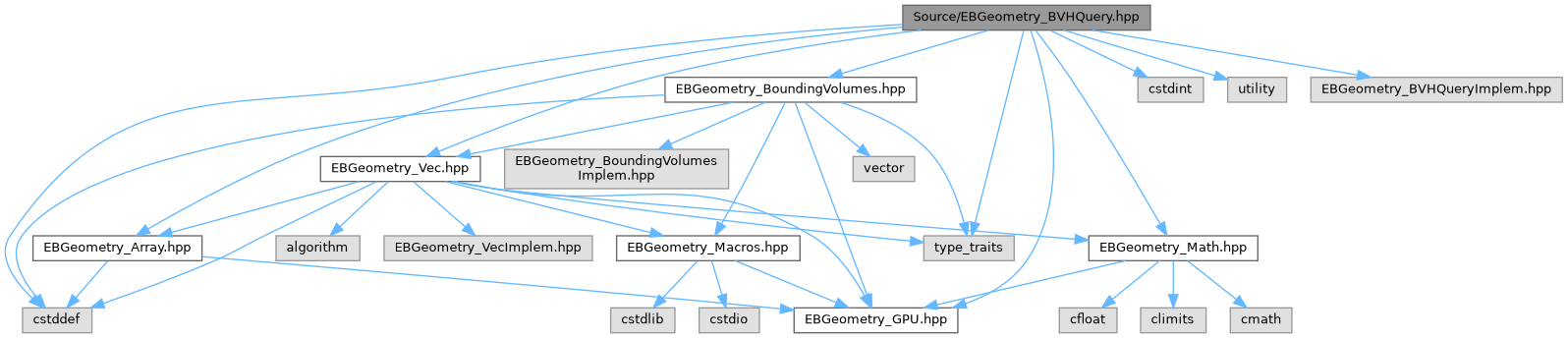

#include <cstddef>#include <cstdint>#include <type_traits>#include <utility>#include "EBGeometry_Array.hpp"#include "EBGeometry_BoundingVolumes.hpp"#include "EBGeometry_GPU.hpp"#include "EBGeometry_Math.hpp"#include "EBGeometry_Vec.hpp"#include "EBGeometry_BVHQueryImplem.hpp"
Go to the source code of this file.
Classes | |
| struct | EBGeometry::BVH::ChildBoxes< T, K > |
| The boxes of the K children of one interior node, in SoA layout: m_lo[axis][child] and m_hi[axis][child], so that one axis of all K children loads as one SIMD register. More... | |
| struct | EBGeometry::BVH::NearestFirst |
| Visit the children within the bound nearest first (smallest key first). The default: a nearest-primitive search or a closest-hit ray tightens its bound fastest this way. More... | |
| struct | EBGeometry::BVH::FarthestFirst |
| Visit the children within the bound farthest first (largest key first). More... | |
| struct | EBGeometry::BVH::AsStored |
| Visit the children within the bound in the order they are stored (first slot first), without sorting: for an any-hit query or a search that collects every leaf it reaches, where order does not matter. More... | |
| struct | EBGeometry::BVH::DescendAll |
| The default visit callback of PackedBVH::traverse(): enter every node that passes the bound. More... | |
| struct | EBGeometry::BVH::QueryKey< Q, class > |
| The key type of a query type: Q::Key if it declares one, else Q::Scalar. More... | |
| struct | EBGeometry::BVH::QueryKey< Q, std::void_t< typename Q::Key > > |
| A query type that declares its key type. More... | |
| struct | EBGeometry::BVH::QueryLanes< Q, class > |
| How many queries a query type carries. 1 unless the type says otherwise. More... | |
| struct | EBGeometry::BVH::QueryLanes< Q, std::void_t< decltype(Q::Lanes)> > |
A query type that declares static constexpr uint32_t Lanes. More... | |
| struct | EBGeometry::BVH::IsQuery< Q, class > |
| Whether a type is a query type: it names its precision (Scalar) and keys a node's children. More... | |
| struct | EBGeometry::BVH::IsQuery< Q, std::void_t< typename Q::Scalar, decltype(std::declval< const Q & >().key(std::declval< const BoundingVolumes::AABBT< typename Q::Scalar > & >()))> > |
| A type with Scalar and a root key(box) is a query type. More... | |
| struct | EBGeometry::BVH::PointQuery< T > |
| A point tracked through a BVH: the key of a box is the squared distance from the point to it (0 inside it). More... | |
| struct | EBGeometry::BVH::RayQuery< T > |
| A ray tracked through a BVH: the key of a box is the distance along the ray at which it enters the box, or +infinity if it misses it. More... | |
Namespaces | |
| namespace | EBGeometry |
| Namespace containing all of EBGeometry's functionality. | |
| namespace | EBGeometry::BVH |
| Namespace for various bounding volume hierarchy (BVH) functionalities. | |
Functions | |
| template<class T > | |
| EBGeometry::BVH::PointQuery (Vec3T< T >) -> PointQuery< T > | |
| Deduce PointQuery's precision from its point: BVH::PointQuery{p}. | |
Detailed Description
What PackedBVH::traverse() tracks through a tree: query types, the child-box rows they test, and the order the children are visited in.
A query type decides, for the K child boxes of a node, how far each one is from the query: its key. PackedBVH::traverse() enters a child whose key is within the caller's bound, in the order a visit order policy gives. The library ships PointQuery (the squared distance from a point to a box) and RayQuery (where a ray enters a box); a user can write their own query type with the same three functions (see PointQuery for the interface).
