EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node Struct Reference

Compact BVH node stored in the flat node array. More...

#include <EBGeometry_BVH.hpp>

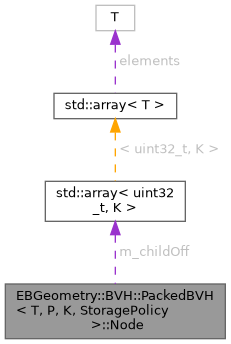

Collaboration diagram for EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node:

Public Member Functions
void	setBoundingVolume (const BV &a_bv) noexcept
	Set the bounding volume for this node.
void	setPrimitivesOffset (uint32_t a_off) noexcept
	Set the primitive offset for this leaf node.
void	setNumPrimitives (uint32_t a_n) noexcept
	Set the primitive count for this leaf node.
void	setChildOffset (uint32_t a_off, size_t a_k) noexcept
	Set the depth-first index of the k-th child.
const BV &	getBoundingVolume () const noexcept
	Get the bounding volume.
uint32_t	getPrimitivesOffset () const noexcept
	Get the primitive offset (leaf nodes only).
uint32_t	getNumPrimitives () const noexcept
	Get the primitive count.
const std::array< uint32_t, K > &	getChildOffsets () const noexcept
	Get the child index table.
bool	isLeaf () const noexcept
	Return true if this is a leaf node.
T	getDistanceToBoundingVolume (const Vec3T< T > &a_point) const noexcept
	Get the distance from a_point to this node's bounding volume.
T	getDistanceToBoundingVolume2 (const Vec3T< T > &a_point) const noexcept
	Get the squared distance from a_point to this node's bounding volume.

Public Attributes
BV	m_bv {}
	Axis-aligned bounding box for this node's subtree.
uint32_t	m_primOff {}
	Index of the first primitive in the global primitive list (leaf nodes only).
uint32_t	m_numPrims {}
	Number of primitives in this leaf (zero for interior nodes).
std::array< uint32_t, K >	m_childOff {}
	Depth-first indices of the K child nodes (interior nodes only).

Detailed Description

template<class T, class P, size_t K, class StoragePolicy>
struct EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node

Compact BVH node stored in the flat node array.

Each node holds a bounding volume, a primitive range (leaves) or child index table (interior nodes). Exposed as a public nested type so that users can write traverse() callbacks (PrunePredicate, NodeKeyFactory) that inspect nodes.

Member Function Documentation

getBoundingVolume()

template<class T , class P , size_t K, class StoragePolicy >

const BV & EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getBoundingVolume ( ) const

inlinenoexcept

Get the bounding volume.

Returns

Reference to m_bv.

getChildOffsets()

template<class T , class P , size_t K, class StoragePolicy >

const std::array< uint32_t, K > & EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getChildOffsets ( ) const

inlinenoexcept

Get the child index table.

Returns

Reference to the K-element child-offset array.

getDistanceToBoundingVolume()

template<class T , class P , size_t K, class StoragePolicy >

T EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getDistanceToBoundingVolume ( const Vec3T< T > &  a_point ) const

inlinenoexcept

Get the distance from a_point to this node's bounding volume.

Parameters

[in]

a_point

Query point.

Returns

Distance to the bounding-box surface, or zero if inside.

getDistanceToBoundingVolume2()

template<class T , class P , size_t K, class StoragePolicy >

T EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getDistanceToBoundingVolume2 ( const Vec3T< T > &  a_point ) const

inlinenoexcept

Get the squared distance from a_point to this node's bounding volume.

Avoids the sqrt that getDistanceToBoundingVolume() pays. pruneTraverse()'s scalar-fallback branch-and-bound compares against a squared pruning bound, so it uses this directly rather than taking a square root only to square it again.

Parameters

[in]

a_point

Query point.

Returns

Squared distance to the bounding-box surface, or zero if inside.

getNumPrimitives()

template<class T , class P , size_t K, class StoragePolicy >

uint32_t EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getNumPrimitives ( ) const

inlinenoexcept

Get the primitive count.

Returns

Number of primitives; zero for interior nodes.

getPrimitivesOffset()

template<class T , class P , size_t K, class StoragePolicy >

uint32_t EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::getPrimitivesOffset ( ) const

inlinenoexcept

Get the primitive offset (leaf nodes only).

Returns

Index of the first primitive in the global list.

isLeaf()

template<class T , class P , size_t K, class StoragePolicy >

bool EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::isLeaf ( ) const

inlinenoexcept

Return true if this is a leaf node.

Returns

True if m_numPrims > 0 (leaf), false otherwise (interior).

setBoundingVolume()

template<class T , class P , size_t K, class StoragePolicy >

void EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::setBoundingVolume ( const BV &  a_bv )

inlinenoexcept

Set the bounding volume for this node.

Parameters

[in]

a_bv

Bounding volume.

setChildOffset()

template<class T , class P , size_t K, class StoragePolicy >

void EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::setChildOffset ( uint32_t  a_off, size_t  a_k  )

inlinenoexcept

Set the depth-first index of the k-th child.

Parameters

[in]	a_off	Node index of the child.
[in]	a_k	Child slot (0 … K-1).

setNumPrimitives()

template<class T , class P , size_t K, class StoragePolicy >

void EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::setNumPrimitives ( uint32_t  a_n )

inlinenoexcept

Set the primitive count for this leaf node.

Parameters

[in]

a_n

Number of primitives.

setPrimitivesOffset()

template<class T , class P , size_t K, class StoragePolicy >

void EBGeometry::BVH::PackedBVH< T, P, K, StoragePolicy >::Node::setPrimitivesOffset ( uint32_t  a_off )

inlinenoexcept

Set the primitive offset for this leaf node.

Parameters

[in]

a_off

Index into the global primitive list.

---

The documentation for this struct was generated from the following file:

• Source/EBGeometry_BVH.hpp
