EBGeometry_AnalyticRayForms.hpp File Reference

Ray forms (see RayForm) for the analytic shapes that have a closed-form crossing: PlaneSDF, SphereSDF, BoxSDF, CylinderSDF, InfiniteCylinderSDF and CapsuleSDF. With this header included, firstHit() and intersects() on these shapes are exact instead of marched, and so are compositions of them (see EBGeometry_CSGRayForms.hpp): each is convex, so the ray is inside it over one span, which spans() gives. More...

#include "EBGeometry_AnalyticDistanceFunctions.hpp"
#include "EBGeometry_Ray.hpp"
#include "EBGeometry_AnalyticRayFormsImplem.hpp"

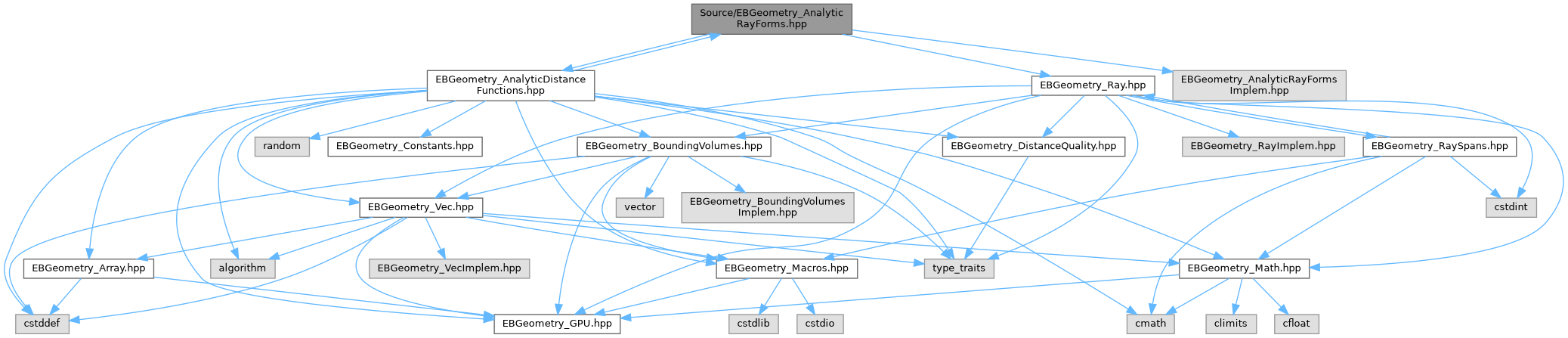

Include dependency graph for EBGeometry_AnalyticRayForms.hpp:

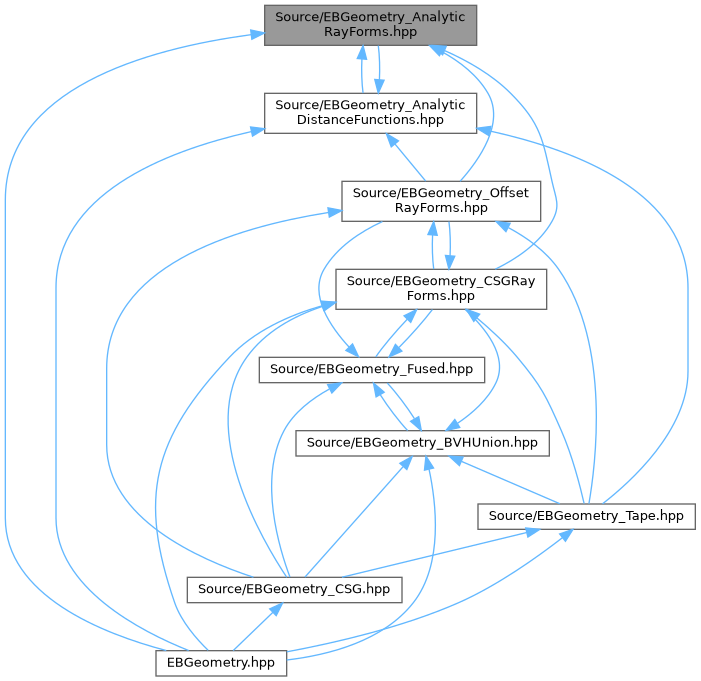

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	EBGeometry::RayForm< PlaneSDF< T > >
	PlaneSDF's ray form: the crossing of the plane, where the ray goes from one side to the other. Exact, and callable on a device. More...
struct	EBGeometry::RayForm< SphereSDF< T > >
	SphereSDF's ray form: the roots of a quadratic. Exact, and callable on a device. More...
struct	EBGeometry::RayForm< BoxSDF< T > >
	BoxSDF's ray form: the slab test, axis by axis. Exact, and callable on a device. More...
struct	EBGeometry::RayForm< CylinderSDF< T > >
	CylinderSDF's ray form: the infinite cylinder around its axis, clipped by the slab between its caps. Exact, and callable on a device. More...
struct	EBGeometry::RayForm< InfiniteCylinderSDF< T > >
	InfiniteCylinderSDF's ray form: the roots of a quadratic, in the plane across its axis. Exact, and callable on a device. More...
struct	EBGeometry::RayForm< CapsuleSDF< T > >
	CapsuleSDF's ray form: the span of the cylinder between its centers and of the two balls at its ends, which, the capsule being convex, is one interval. Exact, and callable on a device. More...

Namespaces
namespace	EBGeometry
	Namespace containing all of EBGeometry's functionality.

Detailed Description

Ray forms (see RayForm) for the analytic shapes that have a closed-form crossing: PlaneSDF, SphereSDF, BoxSDF, CylinderSDF, InfiniteCylinderSDF and CapsuleSDF. With this header included, firstHit() and intersects() on these shapes are exact instead of marched, and so are compositions of them (see EBGeometry_CSGRayForms.hpp): each is convex, so the ray is inside it over one span, which spans() gives.

Author

Robert Marskar
